Zhaga 49mm Width 50W LED Street Light Module Tunnel Light LED PCB Module 20403

Zhaga 49mm Width 50W LED Street Light Module Tunnel Light LED PCB Module 20403



在线咨询
产品介绍

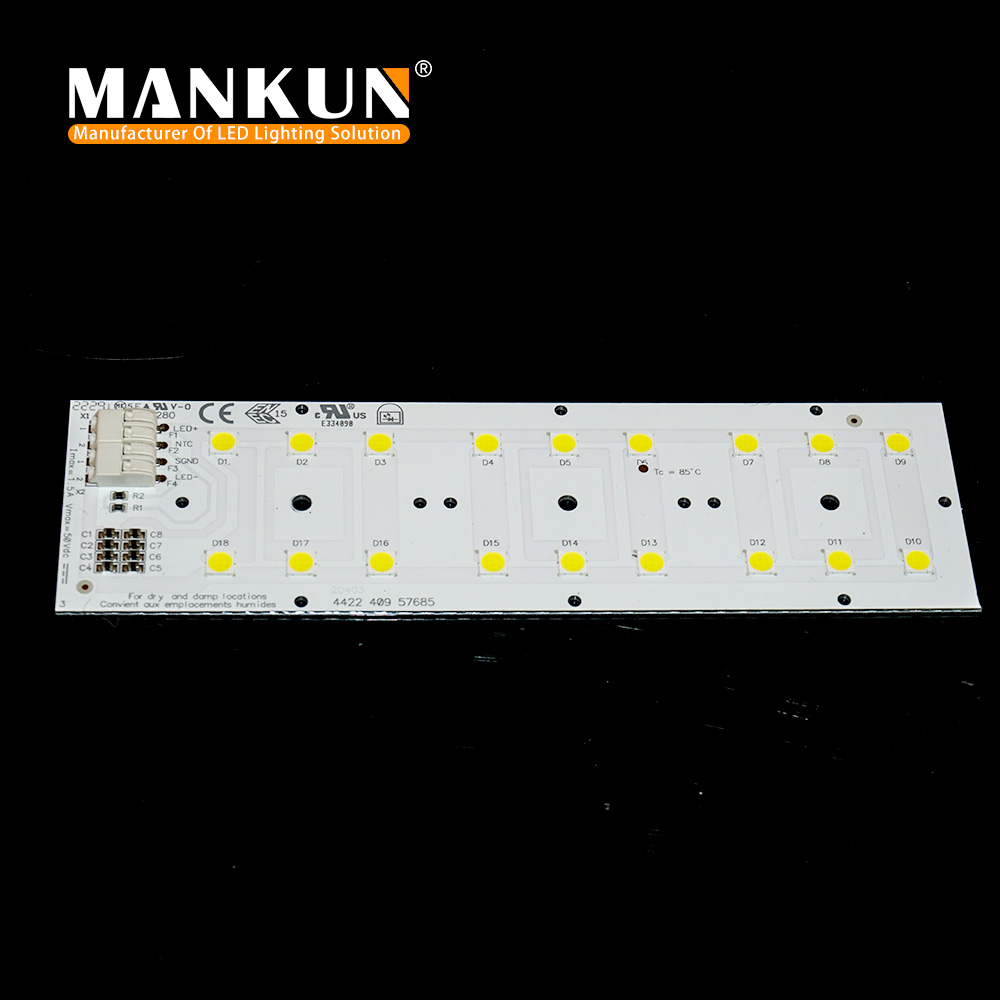

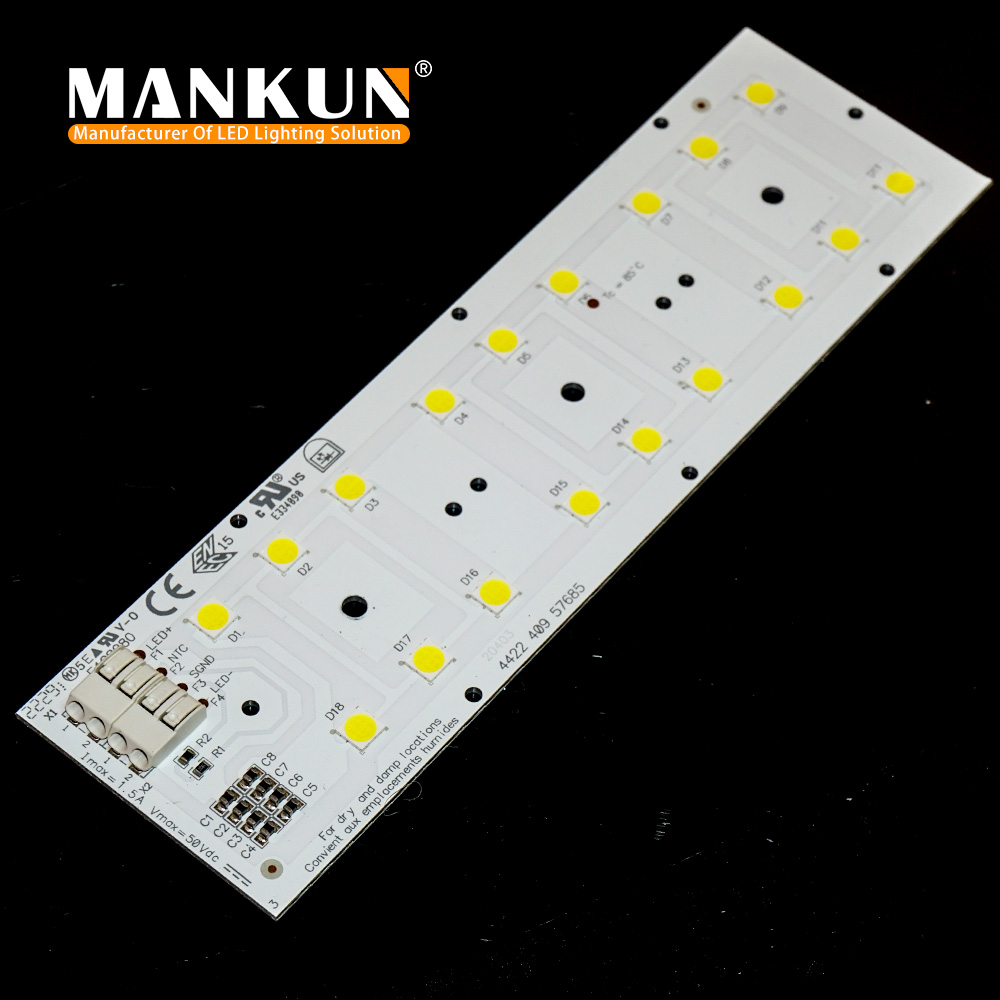

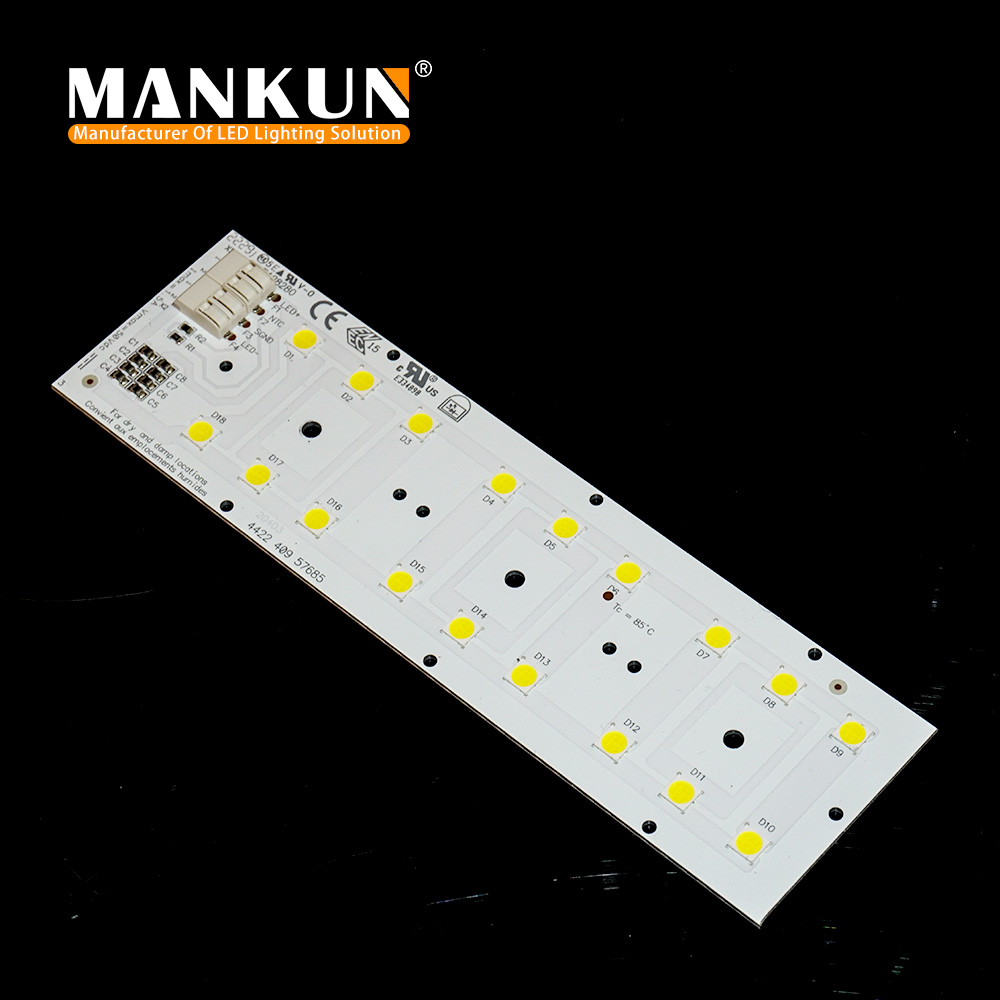

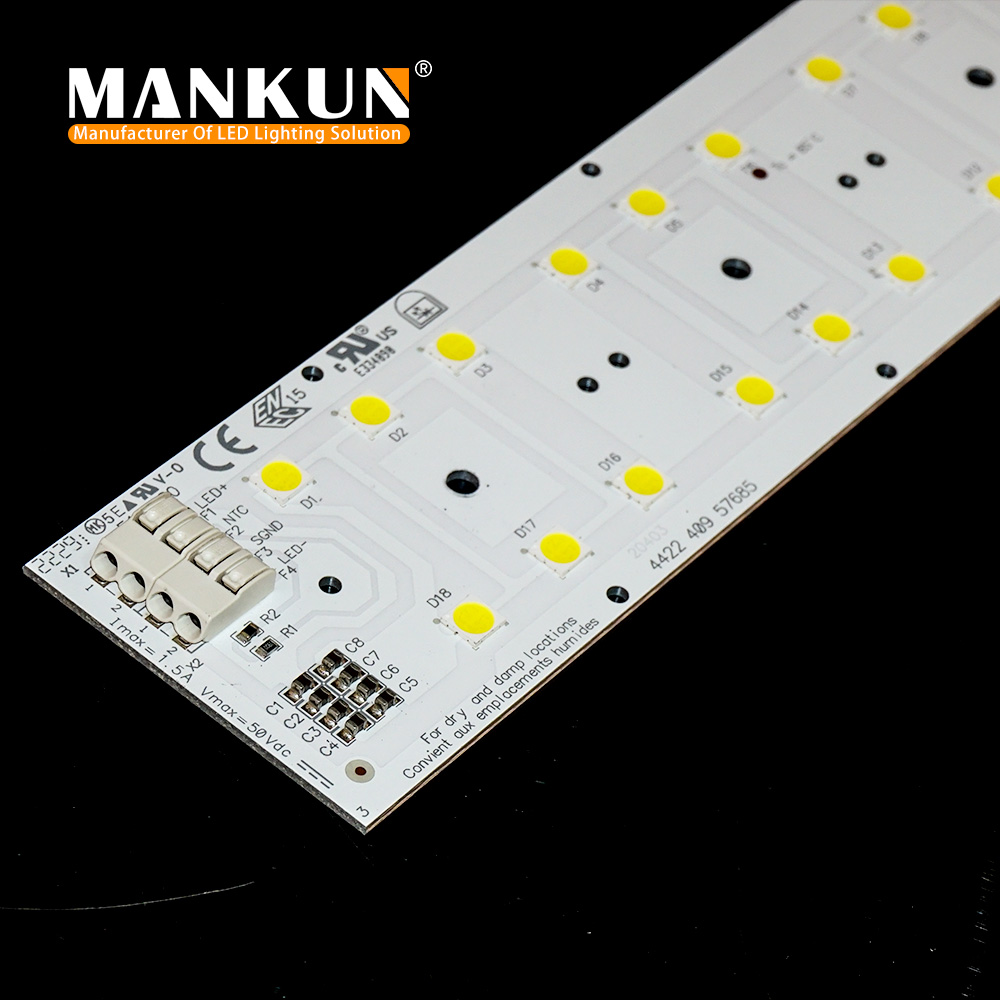

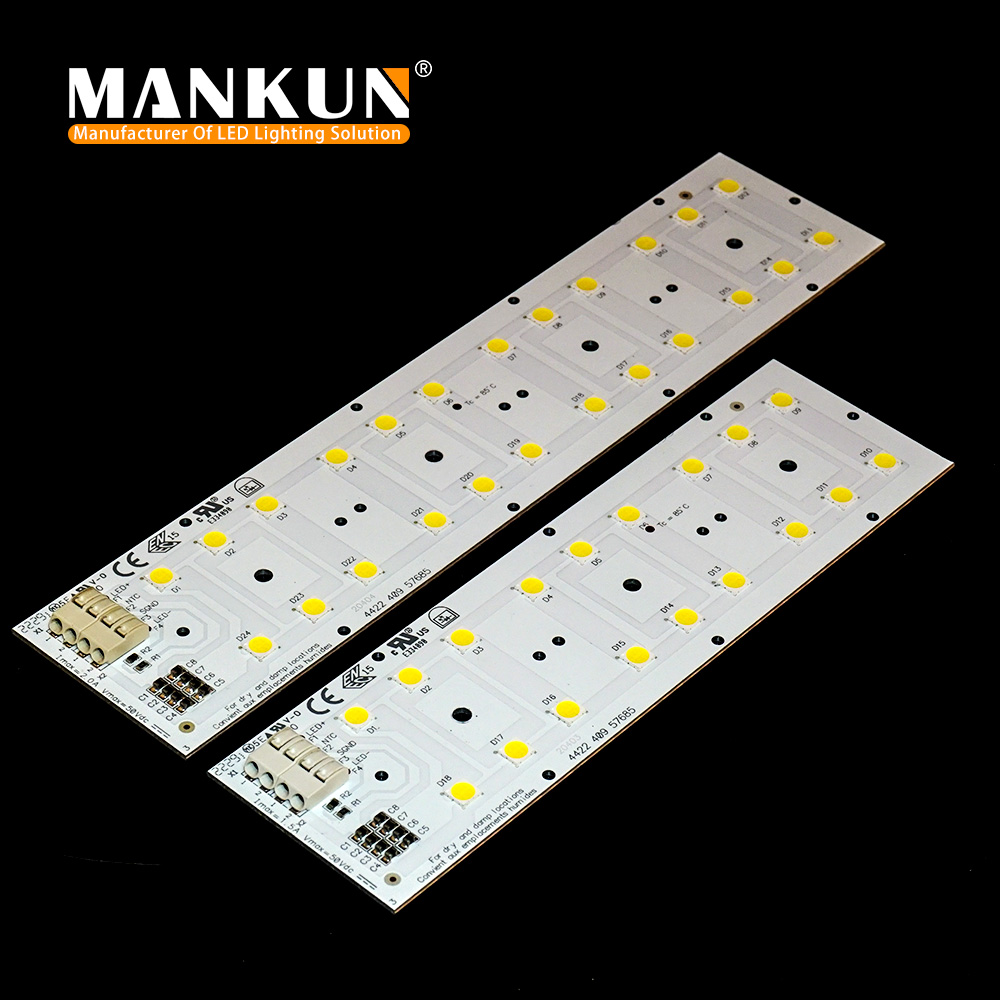

Zhaga 49mm Width 50W LED Street Light Module Tunnel Light LED PCB Module





Specification of LED street light module



Power:MK5050-50W-AL20403
PCB Size:172*49*1.6mm
LED:18pcs LumiLEDs LED 5050
CRI:≥80±5Ra
Lumen efficiency:154 lm/w
Lumen output:7600 lm
Lumen depreciation:
CCT:3000K/4000K/6000K
Voltage:48V
PCB Material:Aluminum base
Bean angle:120°
Package:blister package
Certificate:CE, RoHS
Application:led street light, flood light,Tunnel light, High bay light





Features of LED street light module

  1.   172*49*8mm

  2.    2700-6500K CCT options

  3.   30-50W power options

  4.   Up to 160lm/W (with lens)

  5.   CRI>80 or >90 available in Plus

  6.   Different angle lens options

  7.   Warranty: 5 years limited



FAQ of LED street light module

Q1. What is the warranty of the module?

A1. It's 5 year's warranty



Q2. Can we get samples for testing?

A2. Yes, the sample order is welcome.



Q3. How to proceed with an order for the led Module?
A3: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.



Zhaga 49mm Width 50W LED Street Light Module Tunnel Light LED PCB Module 0
