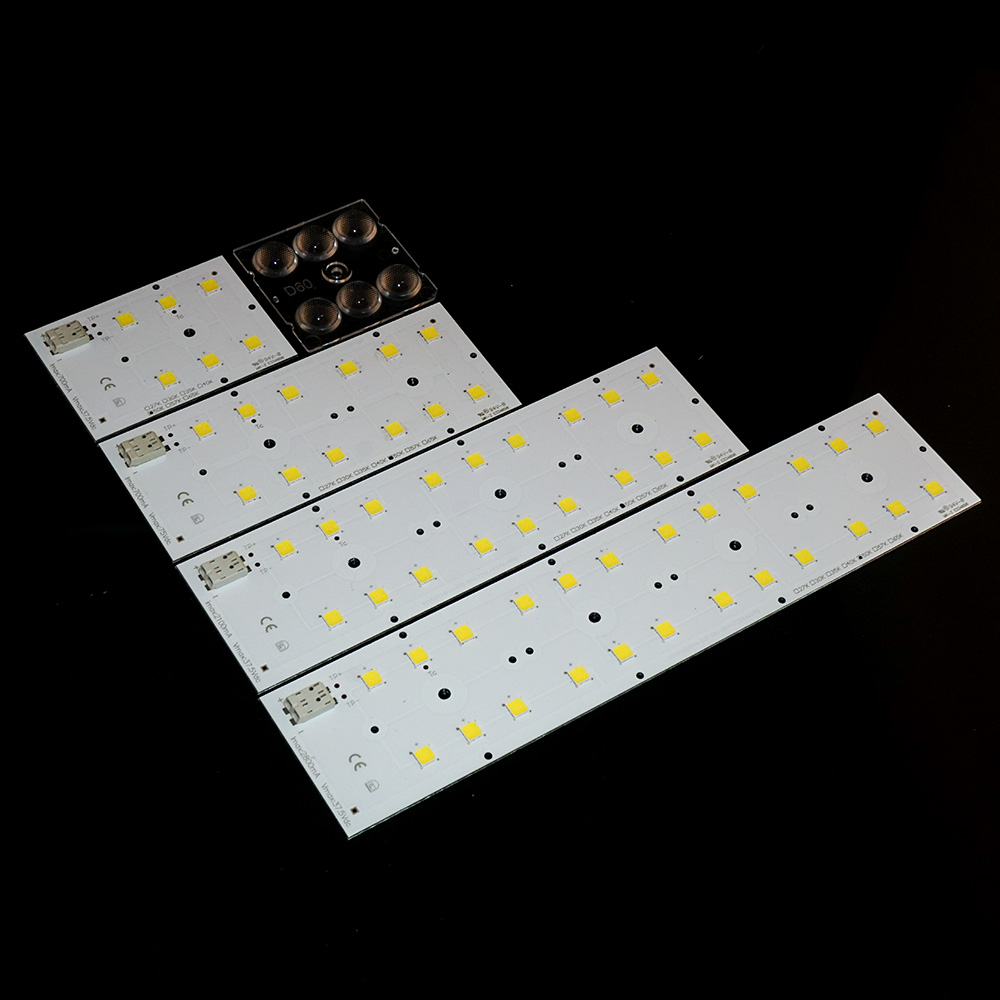

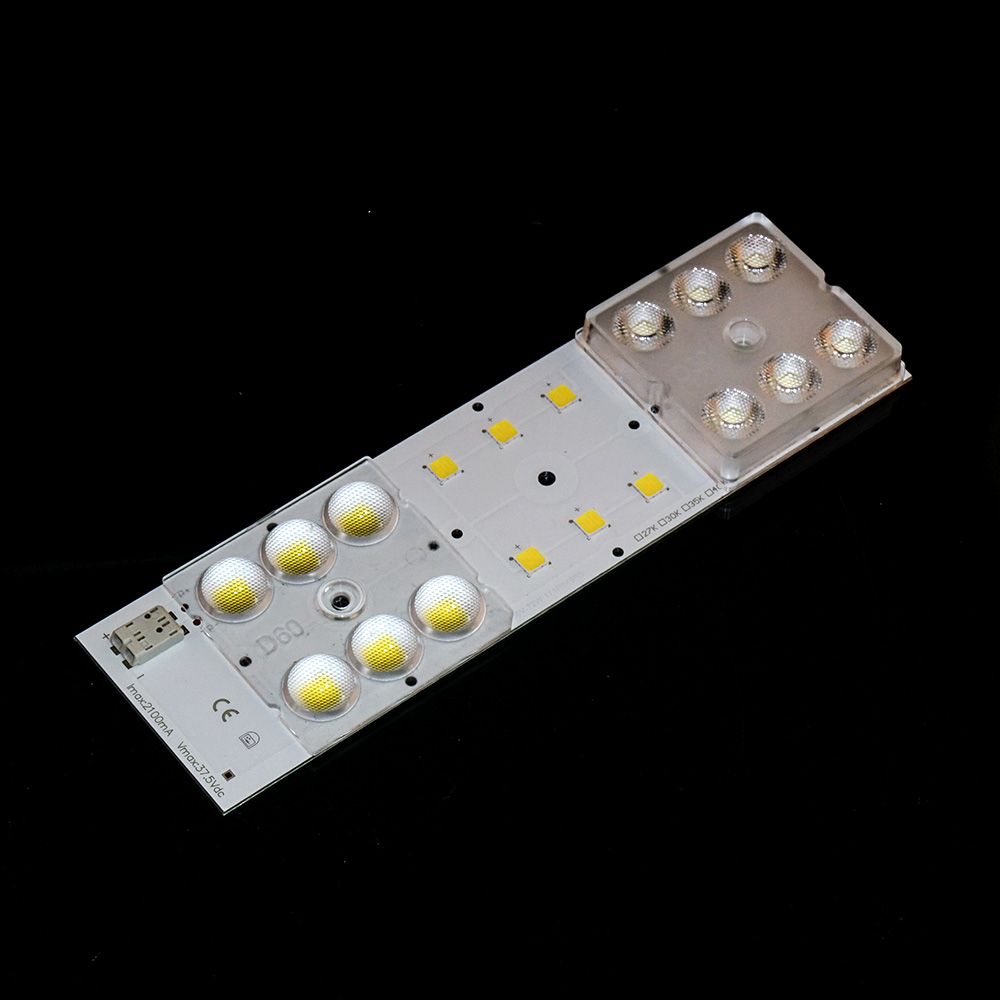

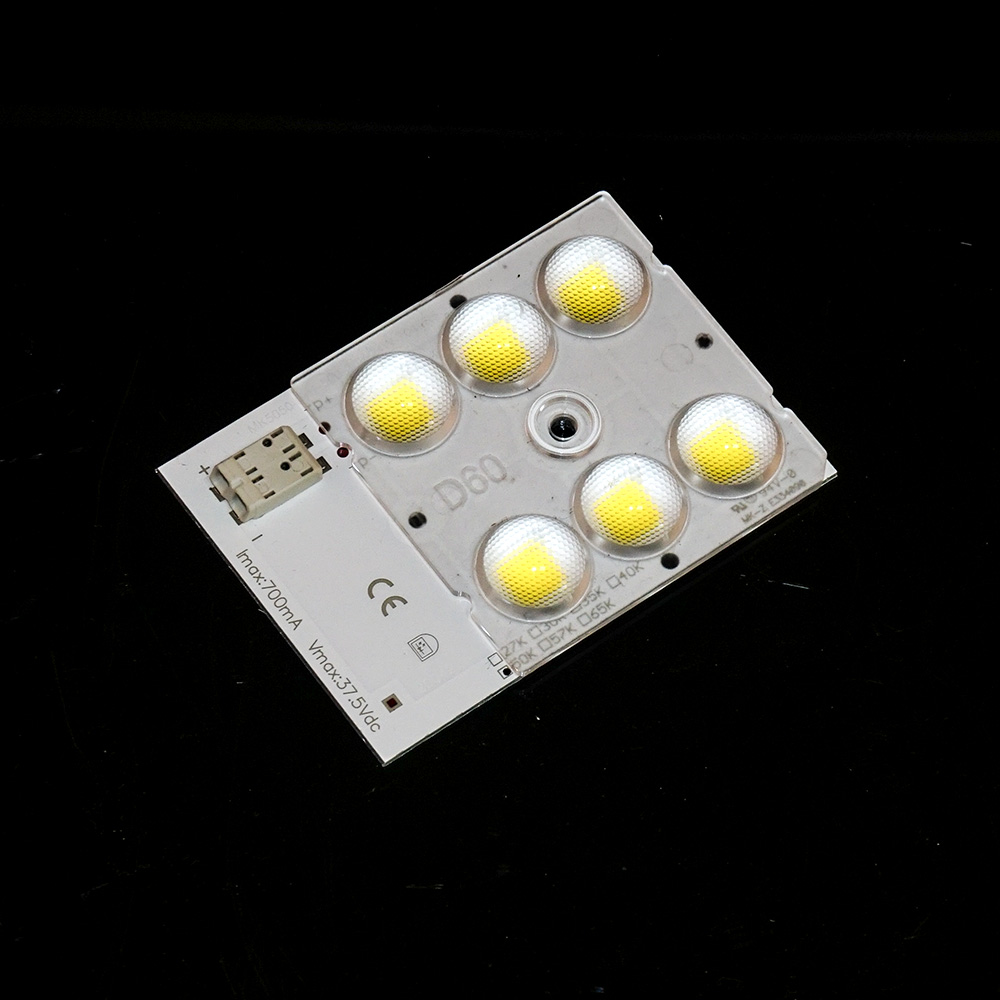

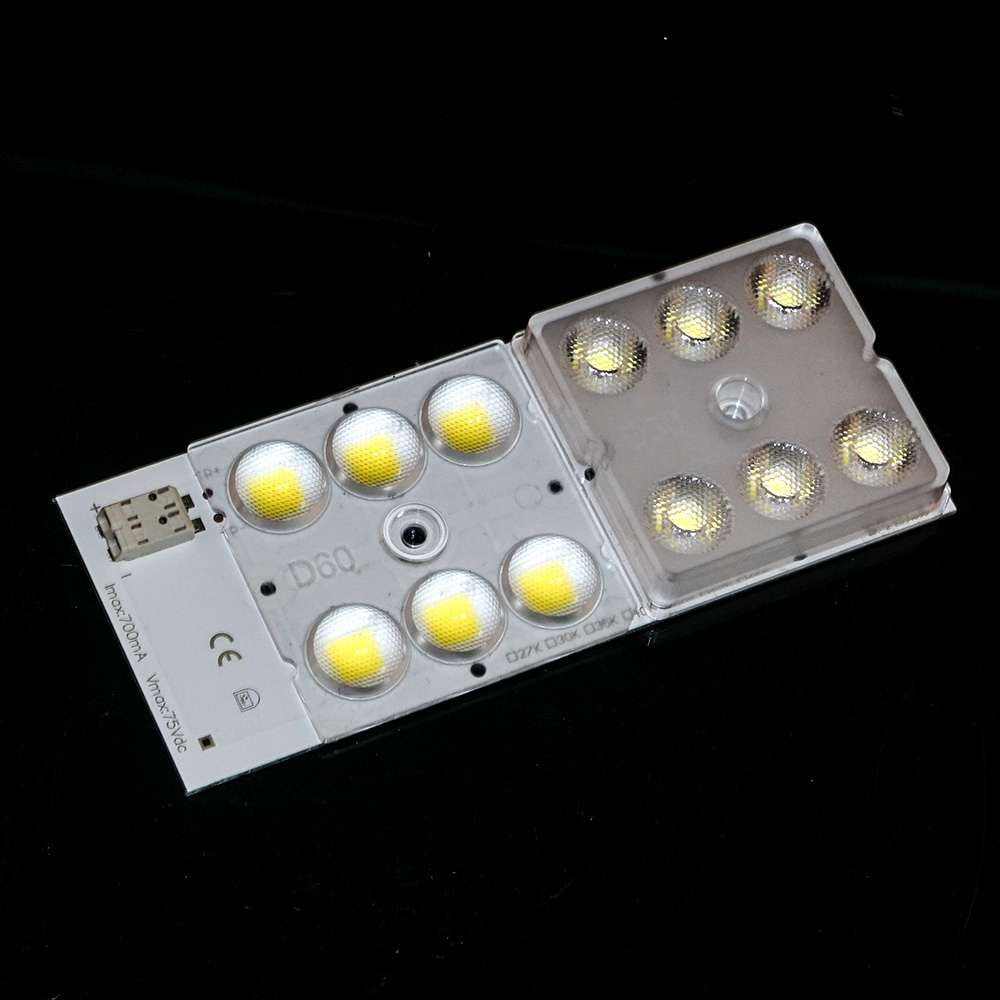

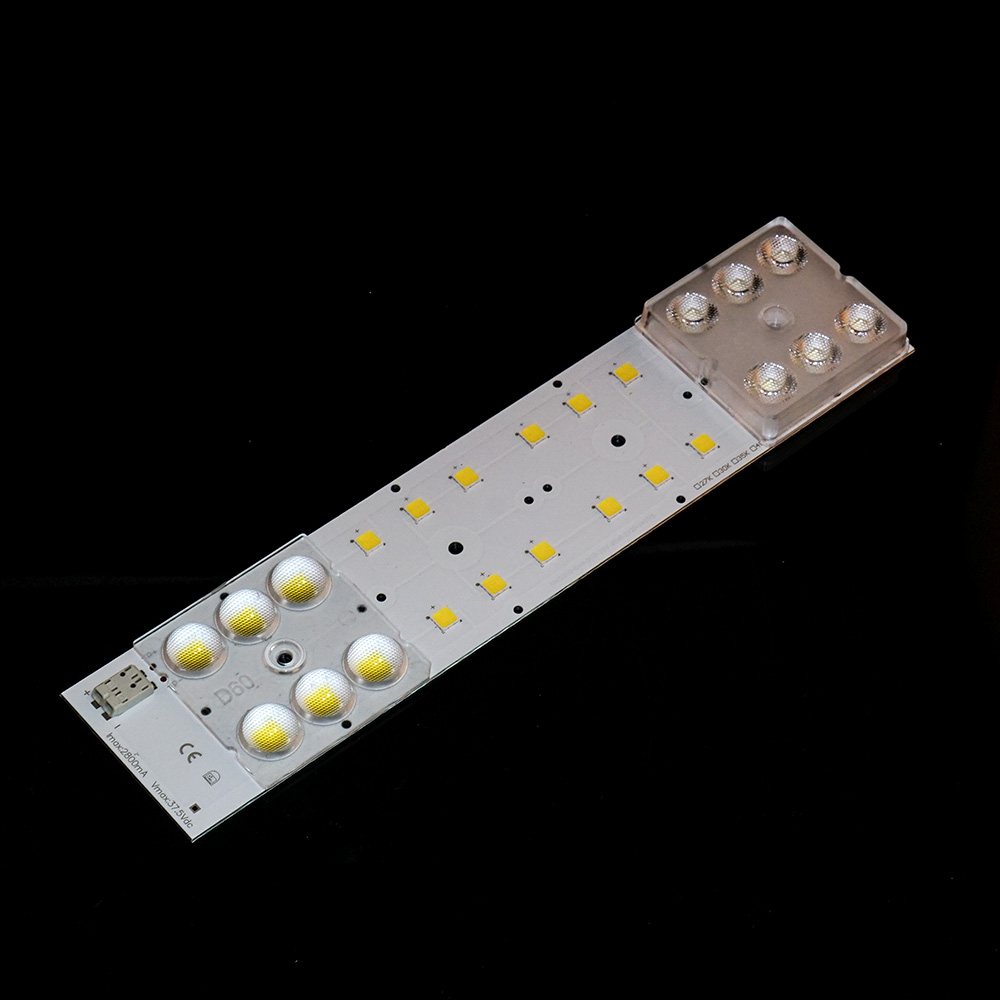

Standard ZHAGA aluminum Width 50mm pcb with led smd5050 streetlight smart board pcb led module

Standard ZHAGA aluminum Width 50mm pcb with led smd5050 streetlight smart board pcb led module



在线咨询
产品介绍

PRODUCT DESCRIPTION

  Type  AL20042/20044/20045/20046

-  Dimension MCPCB 49mm Width-  PCB Thickness 1.6mm

·  Smd 5050 LED

·  Input Voltage DC36V

•  Beam characteristic 120º •  Power Factor > 0.9

·  Color temperatures (3000 K, 4000 K, 5000K) ·  CRI>80 (CRI90 Available on request) ·  Perfect for existing or new lamps ·  LED module efficiency of up to 150 lm/W ·  Excellent color consistency of 5 SDCM ·  Long life-time: 50,000 hours ·  Wide operating thermal range ·  Optical flexibility via third party lenses ·  Instant full light

PROTOTYPES

1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use smd 3030 leds ,High quality leds guarantee long life .
3. We have a competitive price for 3030 leds .
4. We can according your requirements to customized PCB board and Lens mold.
