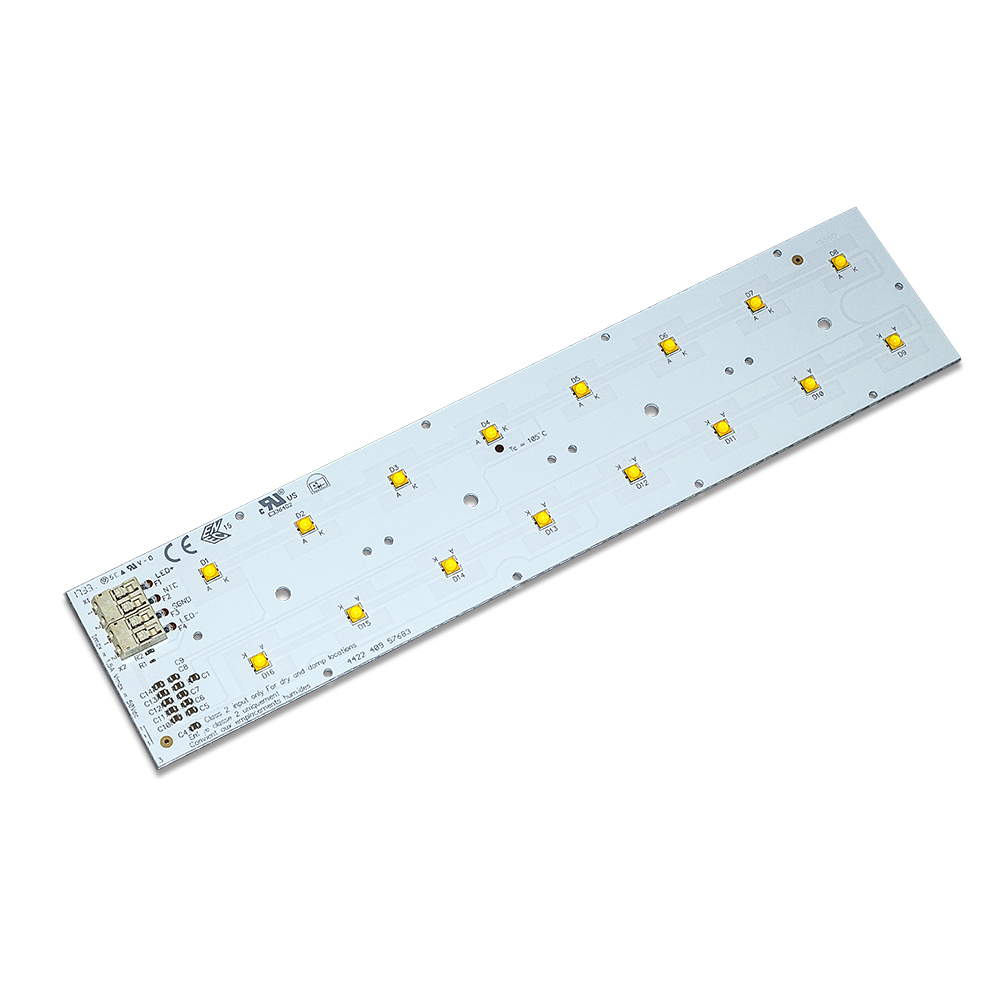

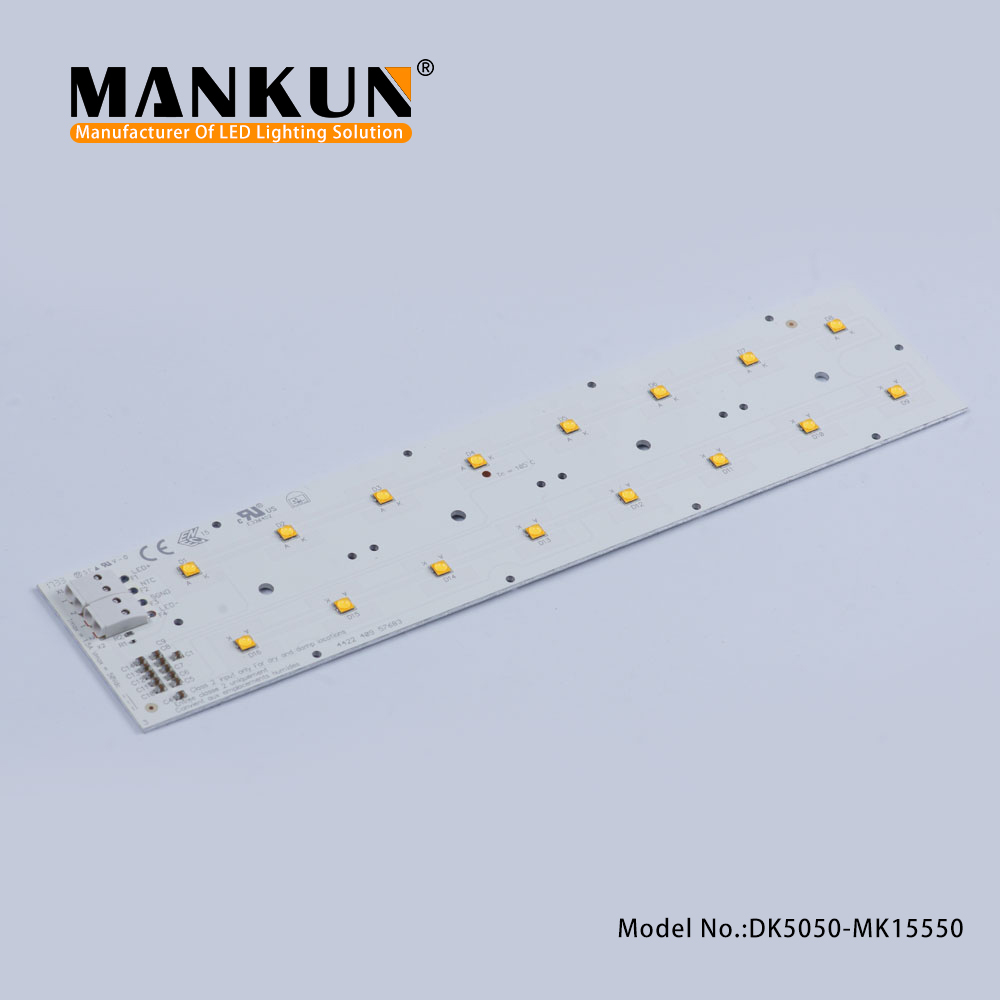

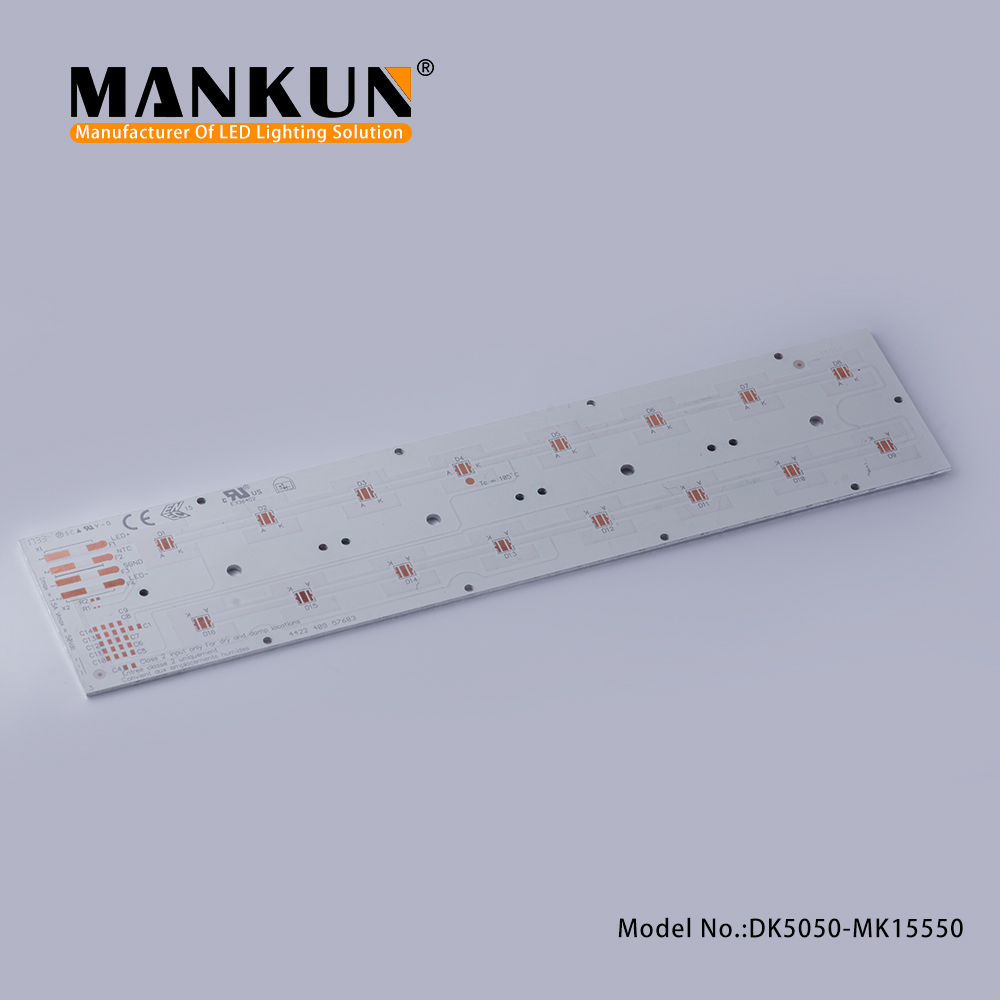

High Efficiency 16X1 LEDS Module Custom Made Standard 223x49.5mm PCB board

在线咨询

产品介绍

Product description

High efficiency outdoor modules
Colour temperatures 3,000 K, 4,000 K, 5,000 K, 5,700 K and 6,500 K
Useful luminous flux 4,550 lm at Irated and tp = 25 °C
Efficacy of the LED module 160 lm/W at Irated and tp = 25 °C
Two colour rendering index to fit the application: CRI > 70 high efficency, CRI > 80 for high colour rendering
Suitable for harsh and humid outdoor conditions
Huge performance temperature range from -40 ... +105 °C
Surge tested (+/- to earth) 6 kV with MW LED driver
Integrated NTC for overtemperature protection
Zhaga Book 15 compliant

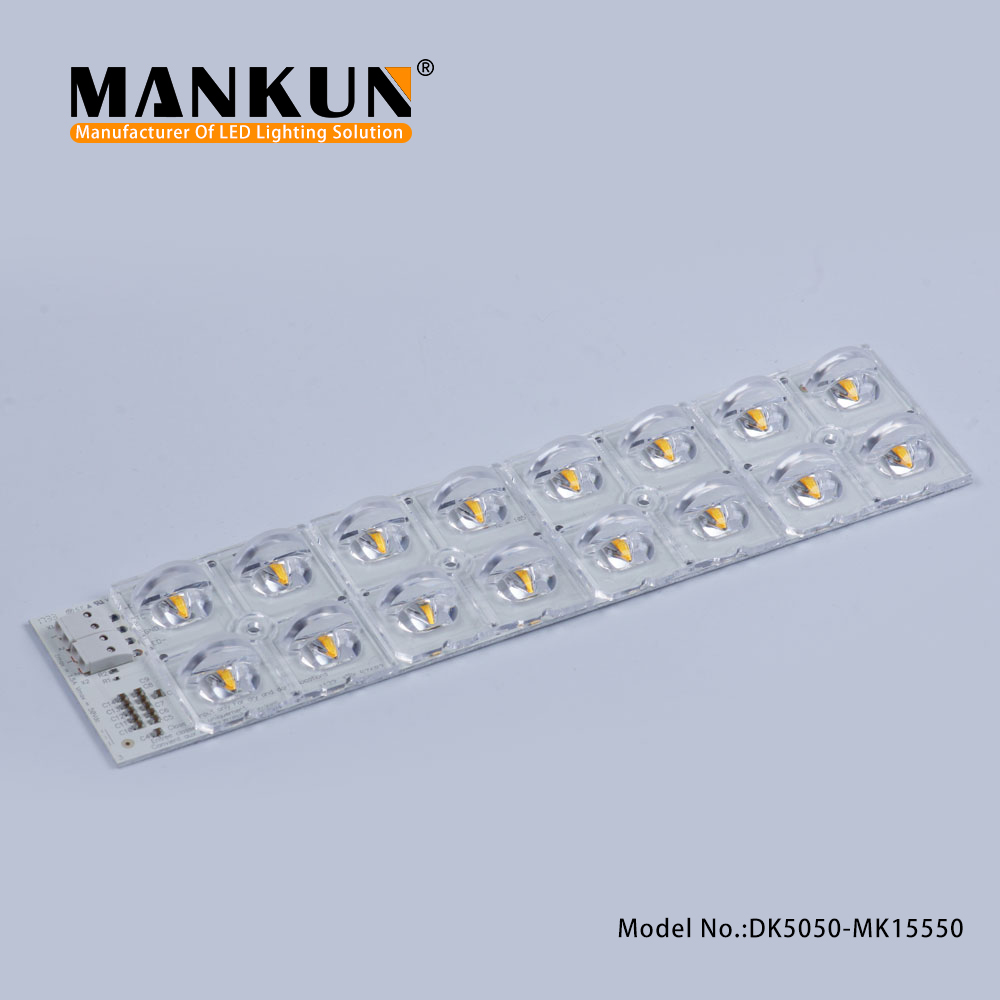

For use with standard 2x2 lenses (e.g. LEDiL Strada 2x2)

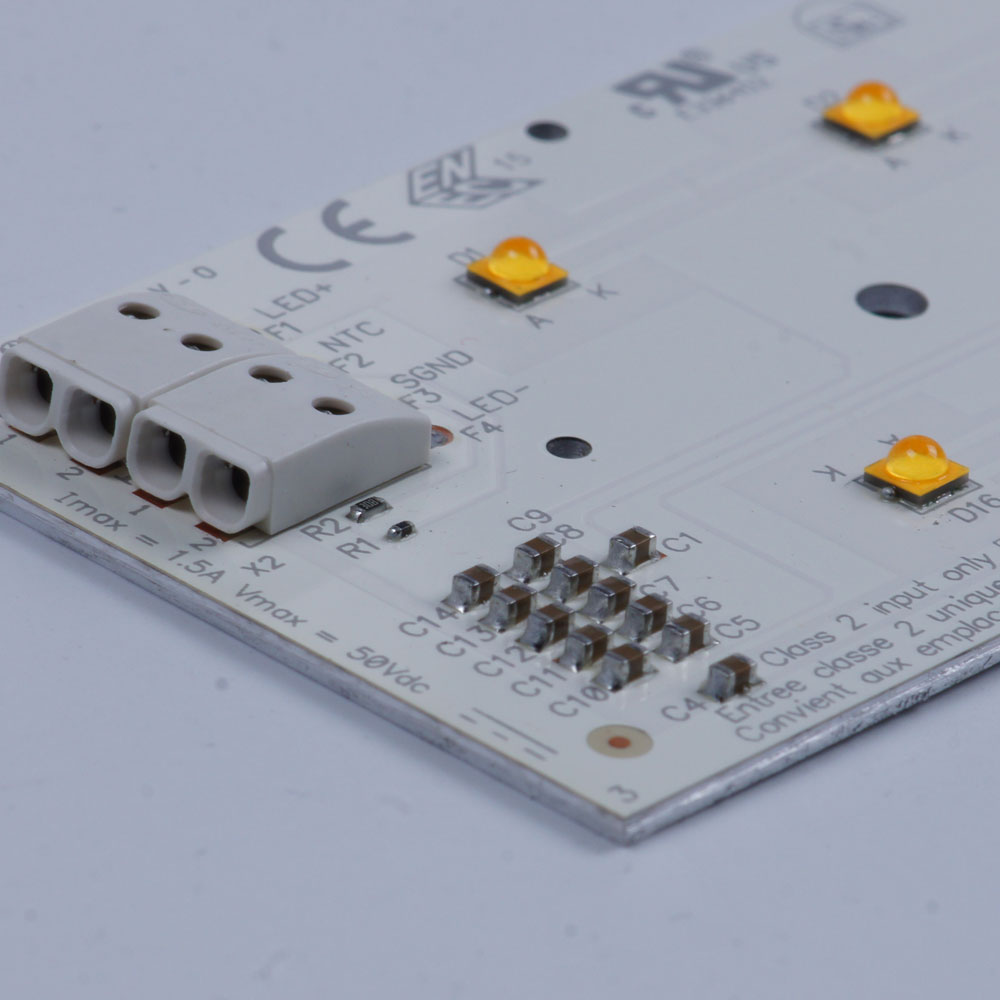

Push-in terminals for simple and quick wiring

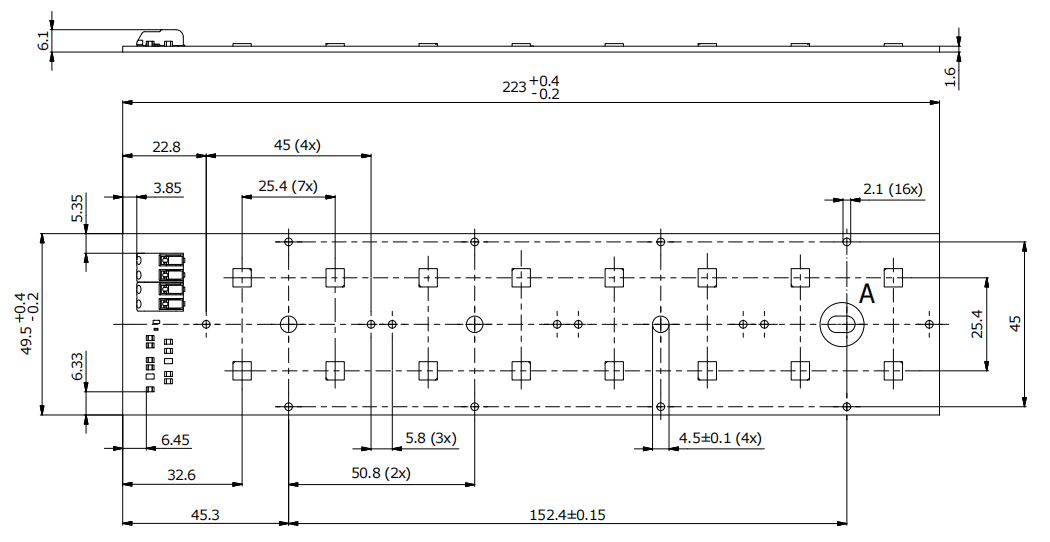

Module dimension 49.5 x 223 mm
Installation of the module together with lens in the luminaire by means of an M3 screw
Long lifetime up to 80,000 hours

Technical data
Beam characteristic	120°
Ambient temperature range	-40 ... +80 °C
tp rated	75 °C
tc	105 °C
Irated	650 mA
Imax	1,200 mA
Max. permissible LF current ripple	1,320 mA
Max. permissible peak current	2,000 mA / max. 10 ms
Max. working voltage for insulation	370 V
Max. working voltage for insulation with lens	670 V
Insulation test voltage	1.74 kV
CTI of the printed circuit board	> 600
ESD classification	Severity level 4
Risk group (IEC 62471)	RG2 (Ethr = 684 lx, RG1 at d ≥ 48 cm)
Classification acc. to IEC 62031	Built-in
Type of protection	IP00
Lumen maintenance L70B50	80,000 h
Guarantee	3+5 Year(s)

Specific technical data
