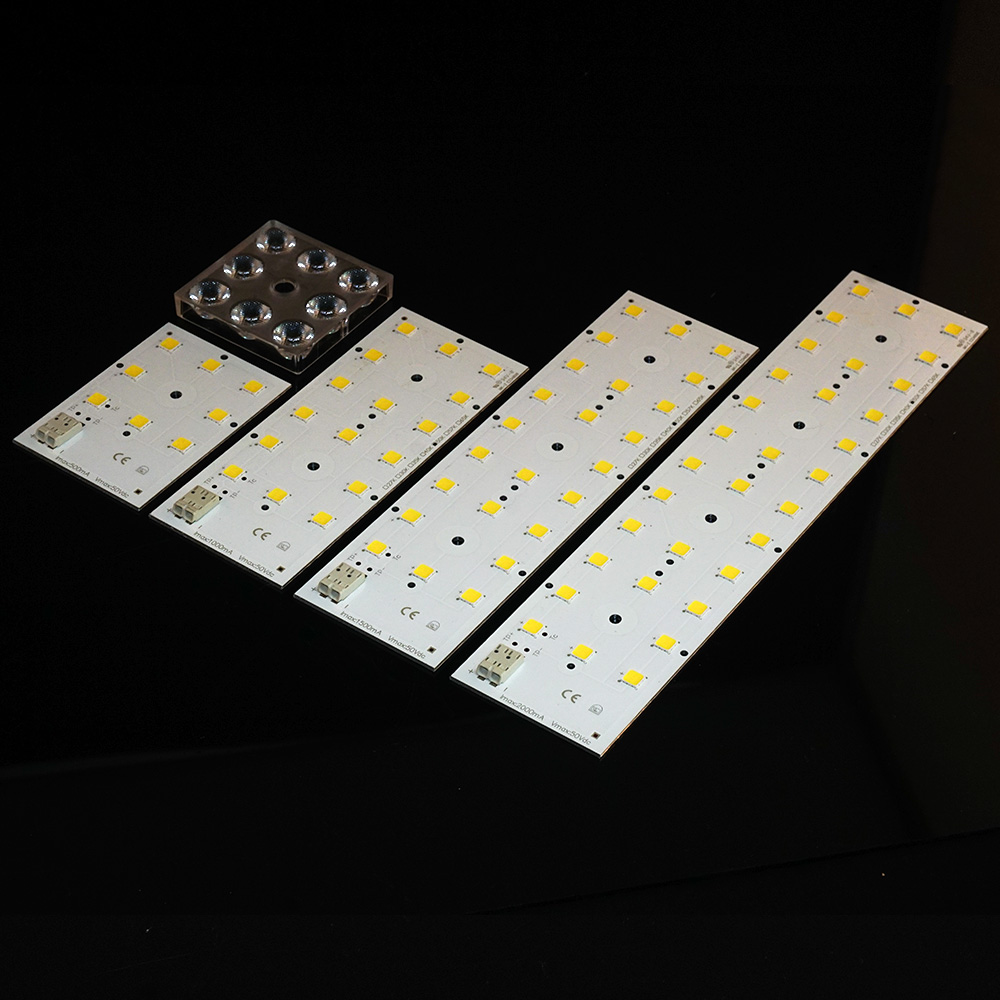

Aluminium Material Smd 5050 Led Module For Street Light Customized PCB Module

Product description

• High efficiency outdoor modules

• Suitable for harsh and humid outdoor conditions

• Huge performance temperature range from -40 ... +105 °C

• Surge tested (+/- to earth) 6 kV with Tridonic LED driver

• Integrated NTC for overtemperature protection

• Zhaga Book 15 compliant

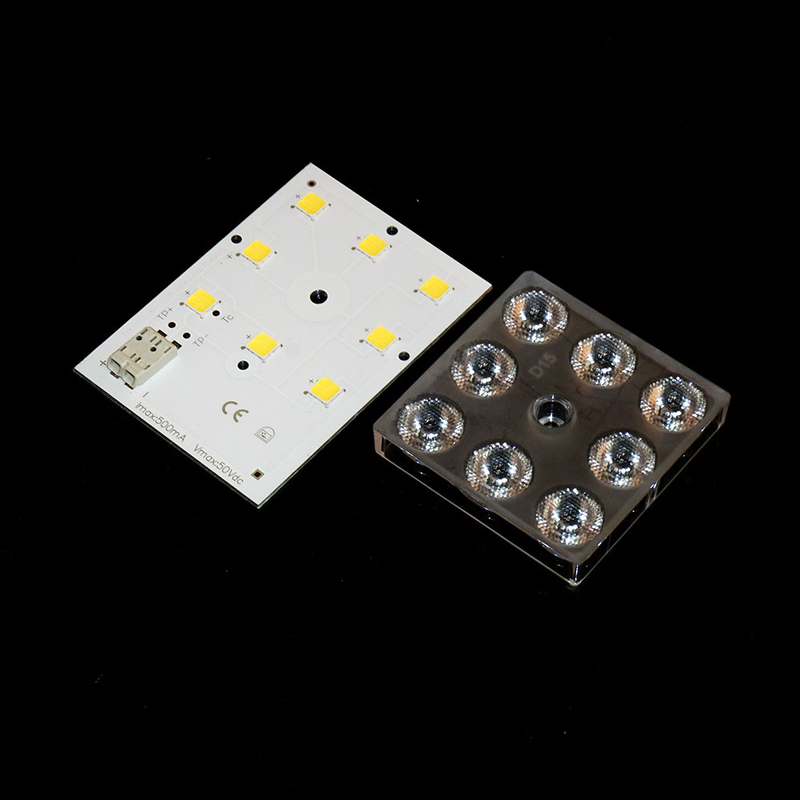

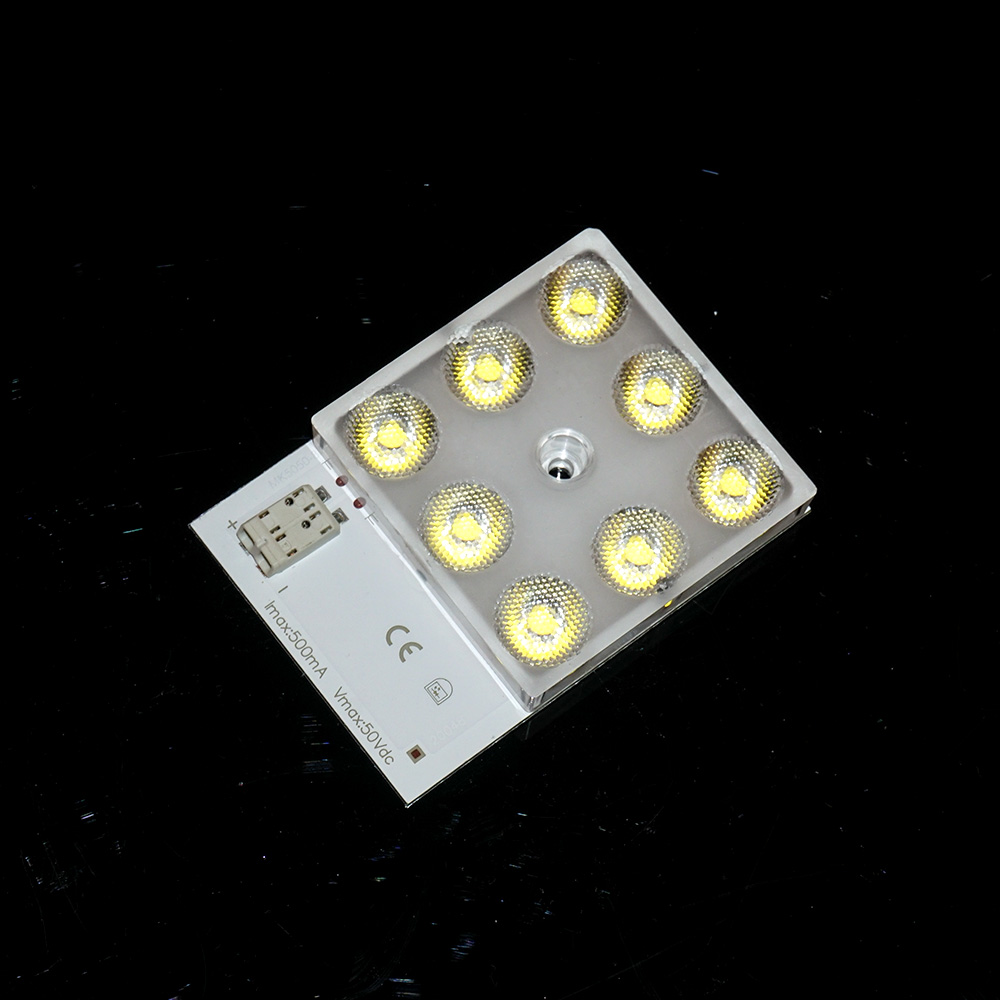

• For use with standard 2x2 lenses (e.g. LEDiL Strada 2x2)

• Push-in terminals for simple and quick wiring

• Long lifetime up to 100,000 hours

• 8 years guarantee

Optical properties

• Colour temperatures 2,200 K, 2,700 K, 3,000 K, 4,000 K, 5,000 K, 5,700 K and 6,500 K

• Useful luminous flux 4,550 lm at Irated and tp = 25 °C

• Efficacy of the LED module 181 lm/W at Irated and tp = 25 °C

• Two colour rendering index to fit the application: CRI > 70 high efficency, CRI > 80 for high colour rendering

• Small luminous flux tolerances

Technical Specifications
