Product Introduction

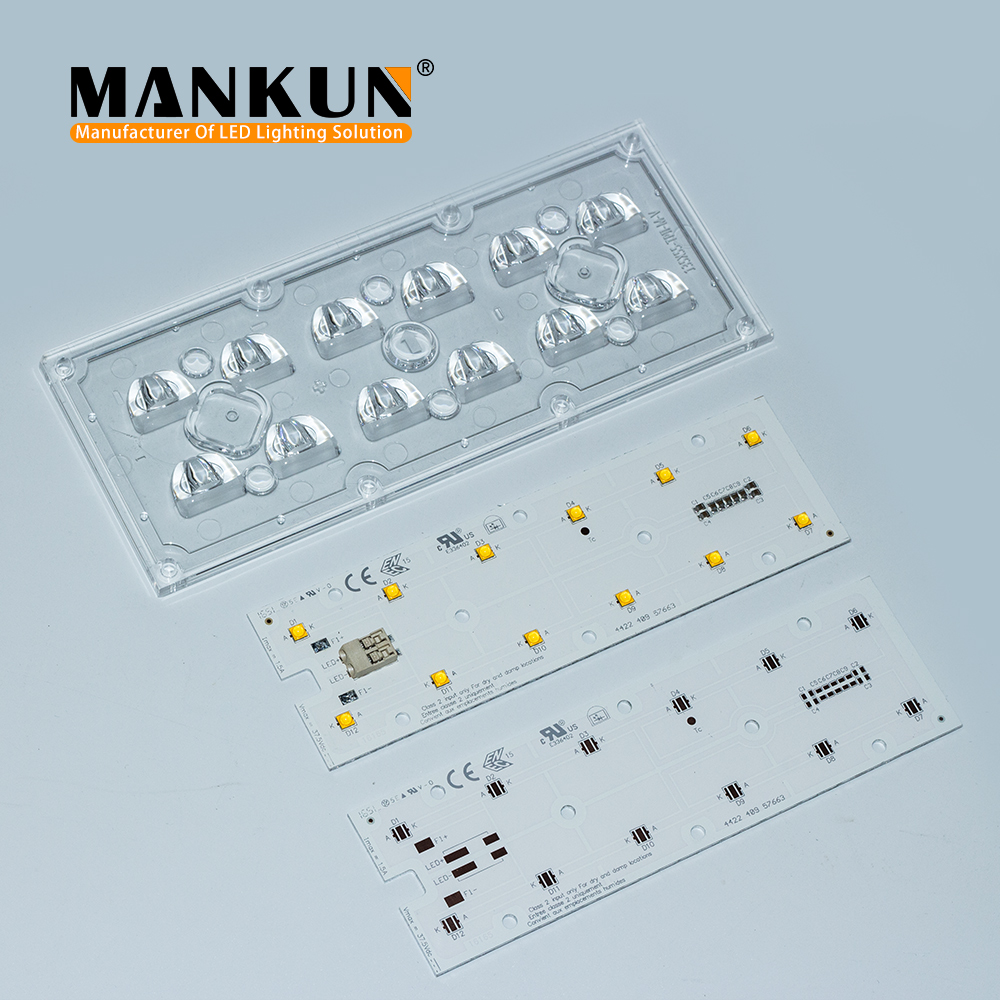

2X6 Injection LED Module Suitable For Harsh Humid Outdoor Conditions



Injection LED Module description

  • High efficiency outdoor modules

  • Suitable for harsh and humid outdoor conditions

  • Huge performance temperature range from -40 ... +105 °C

  • Surge tested (+/- to earth) 6 kV with Tridonic LED driver

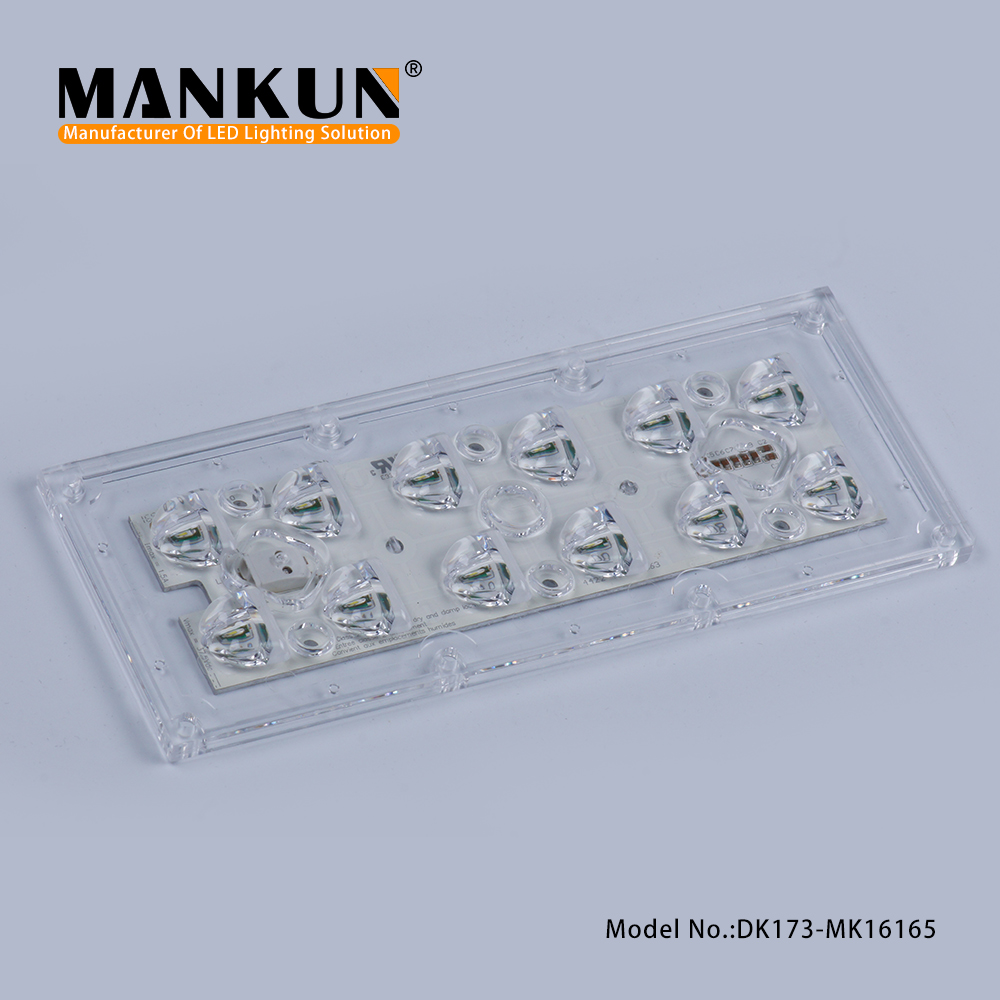

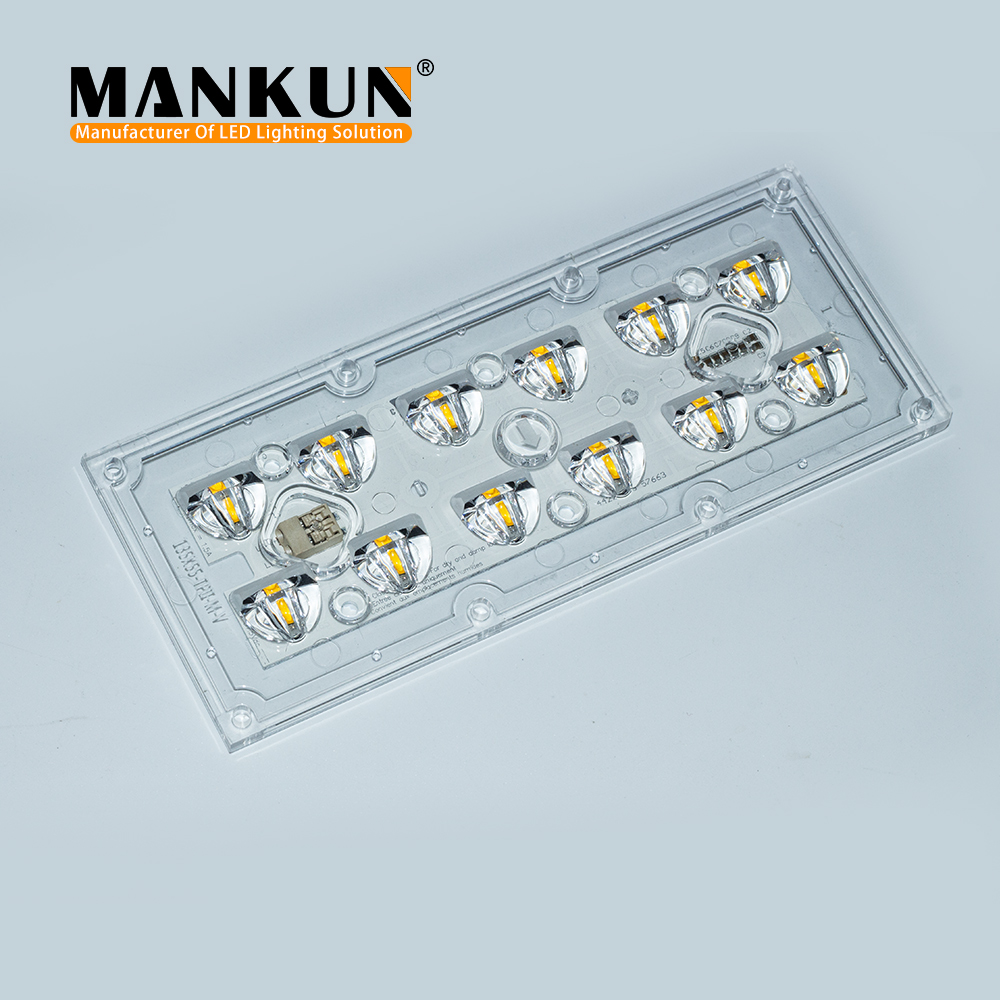

  • For use with IP6x lenses (e.g. LEDiL Strada IP-2x6)

  • Push-in terminals for simple and quick wiring

  • Long lifetime up to 100,000 hours

  • 5 years guarantee

Optical properties

  • Colour temperatures 3,000, 4,000 and 5,000 K

  • Useful luminous flux 3,926 lm at Irated and tp = 25 °C

  • Efficacy of the LED module 162 lm/W at Irated and tp = 25 °C

  • High colour rendering index CRI > 80

  • Small luminous flux tolerances

Mechanical properties

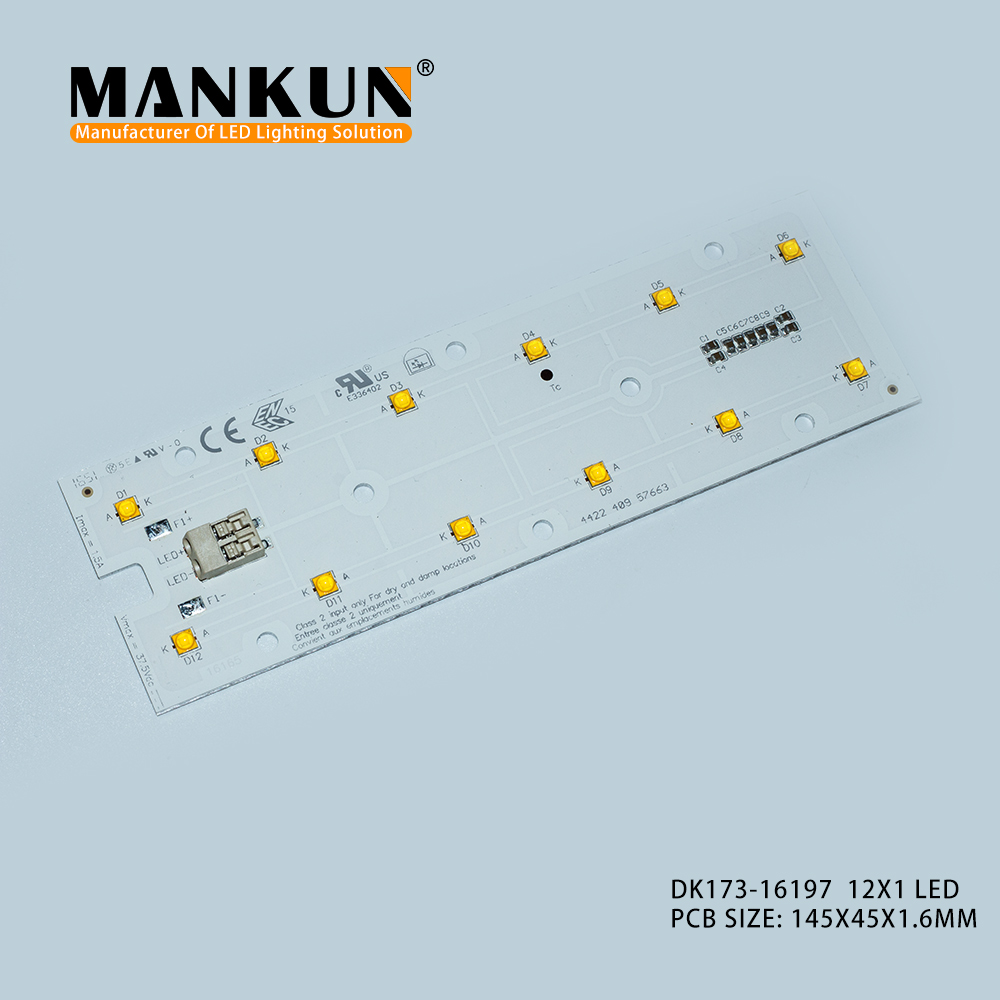

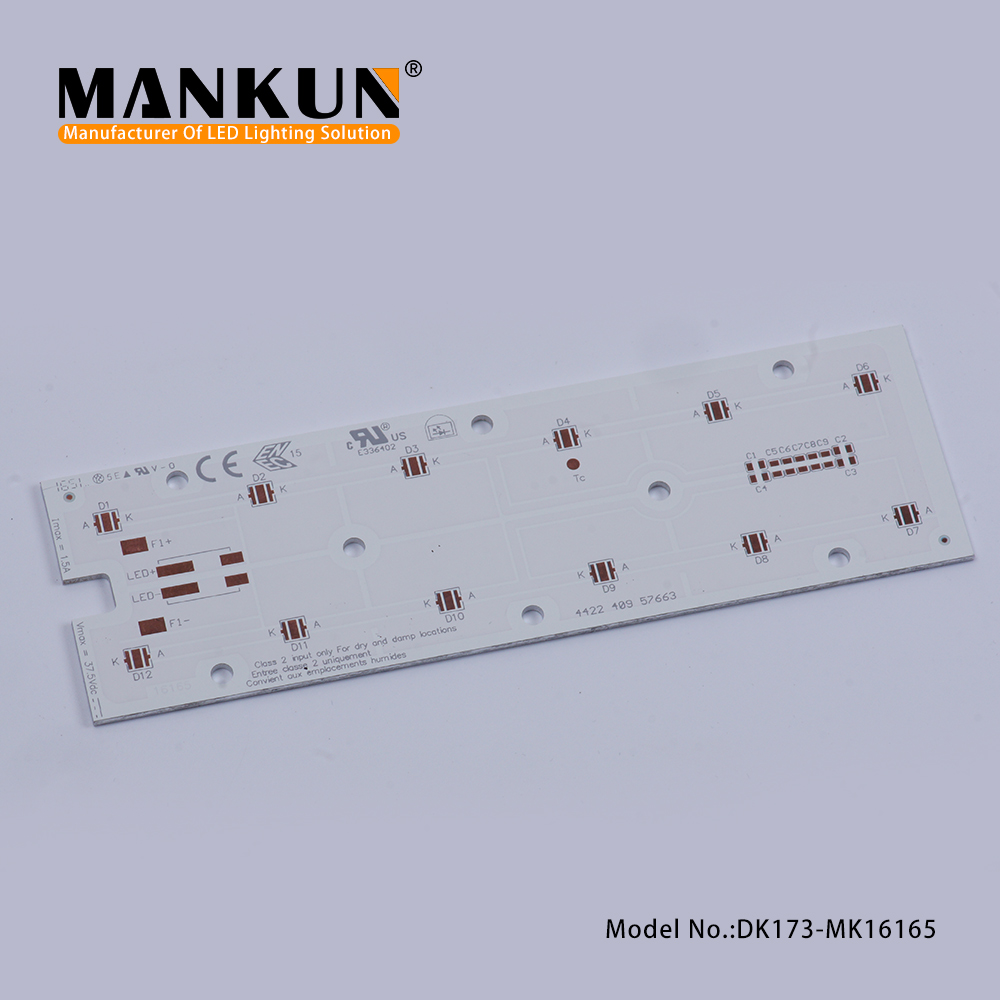

  • Module dimension 45 x 146 mm

  • Installation of the module together with lens in the luminaire by means of an M3 screw





Approval marks:    ESD cRUus CE UKCA ENEC RoHs



Technical data
Beam characteristic120°
Ambient temperature range-40 ... +80 °C
tp rated75 °C
tc105 °C
Irated700 mA
Imax1,200 mA
Max. permissible LF current ripple1,320 mA
Max. permissible peak current2,000 mA / max. 10 ms
Max. working voltage for insulation 370 V
Max. working voltage for insulation with lens670 V
Insulation test voltage1.74 kV
CTI of the printed circuit board> 600
ESD classificationSeverity level 4
Risk group (IEC 62471) RG2 (Ethr = 684 lx, RG1 at d ≥ 48 cm)
Classification acc. to IEC 62031Built-in
Type of protectionIP00
Lumen maintenance L70B50100,000 h
Guarantee5 Year(s)

Specific technical dataFilter

ModelCCT      KCurrent    mAFlux     Tp 250C lmFlux     Tp 650C lmPower   Tp 650C WEfficacy       Tp 250C lm/WEfficacy   Tp 650C lm/WImax    mAMin.   Voltage    Tp 650C  Max. Voltage      Tp 250C
MK16165(B-S3)30005002322 2214 18.0 129123150031.233.6
7003122 2942 25.8 121114
10004196 3894 37.8 111103
14005475 4977 55.3 9990
40005002502 2376 18.0 139132
7003354 3174 25.8 130123
10004536 4196 37.8 120111
14005918 5365 55.3 10797
50005002682 2556 18.0 149142
7003612 3406 25.8 140132
10004839 4499 37.8 128119
14006305 5752 55.3 114104
65005002682 2556 18.0 149142
7003612 3406 25.8 140132
10004839 4499 37.8 128119
14006305 5752 55.3 114104
The mentioned data can have a 10% tolerance.
