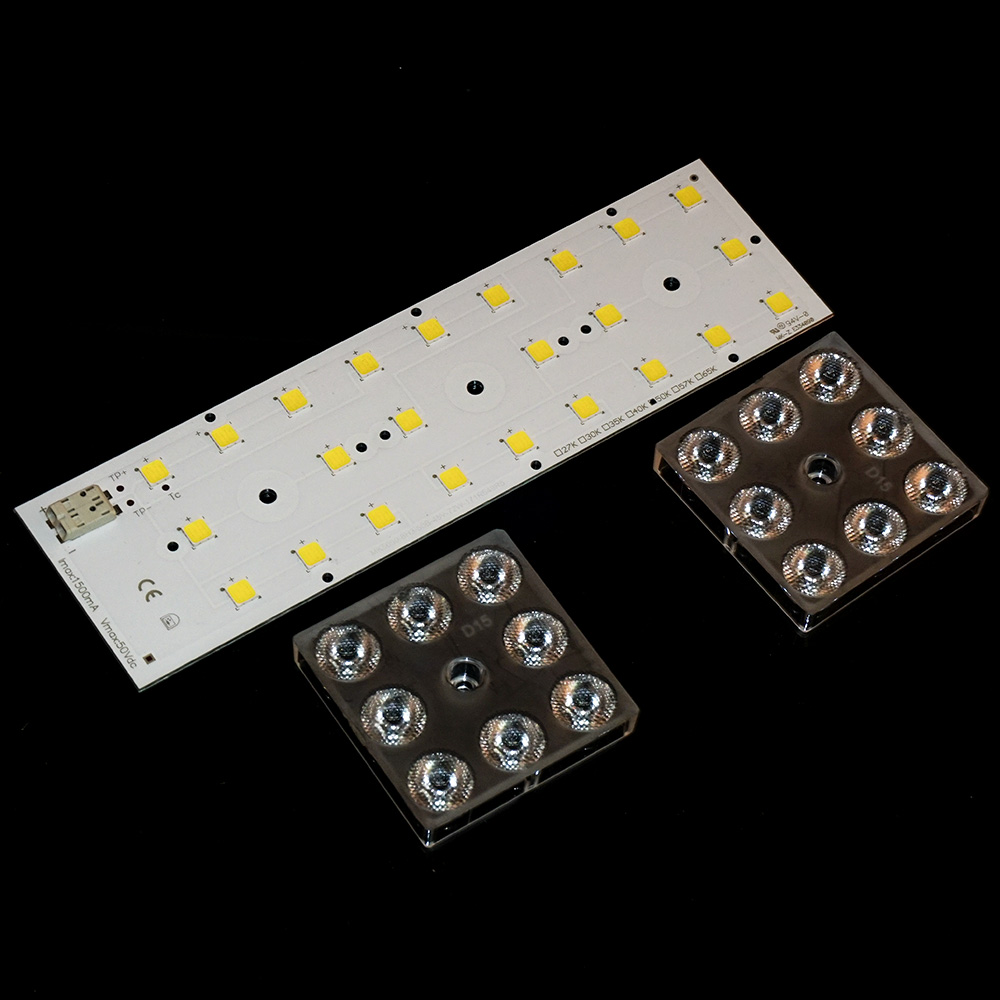

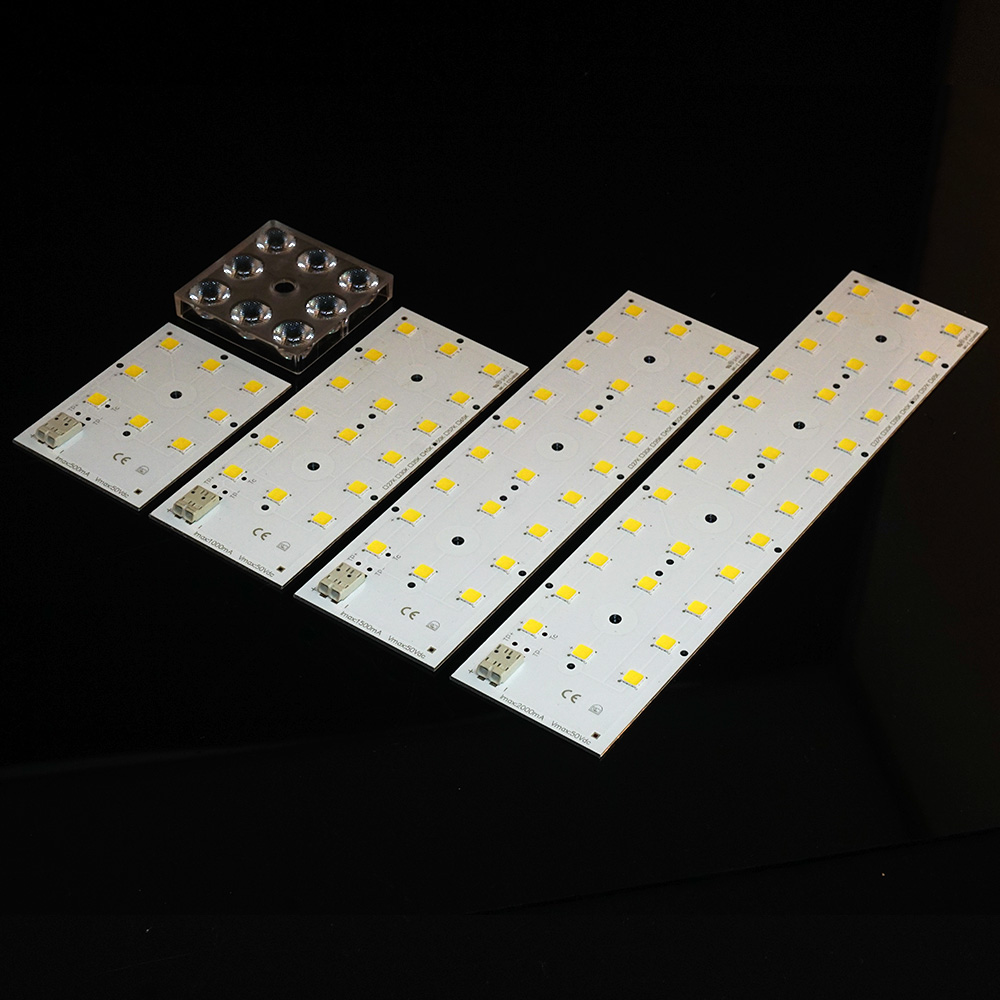

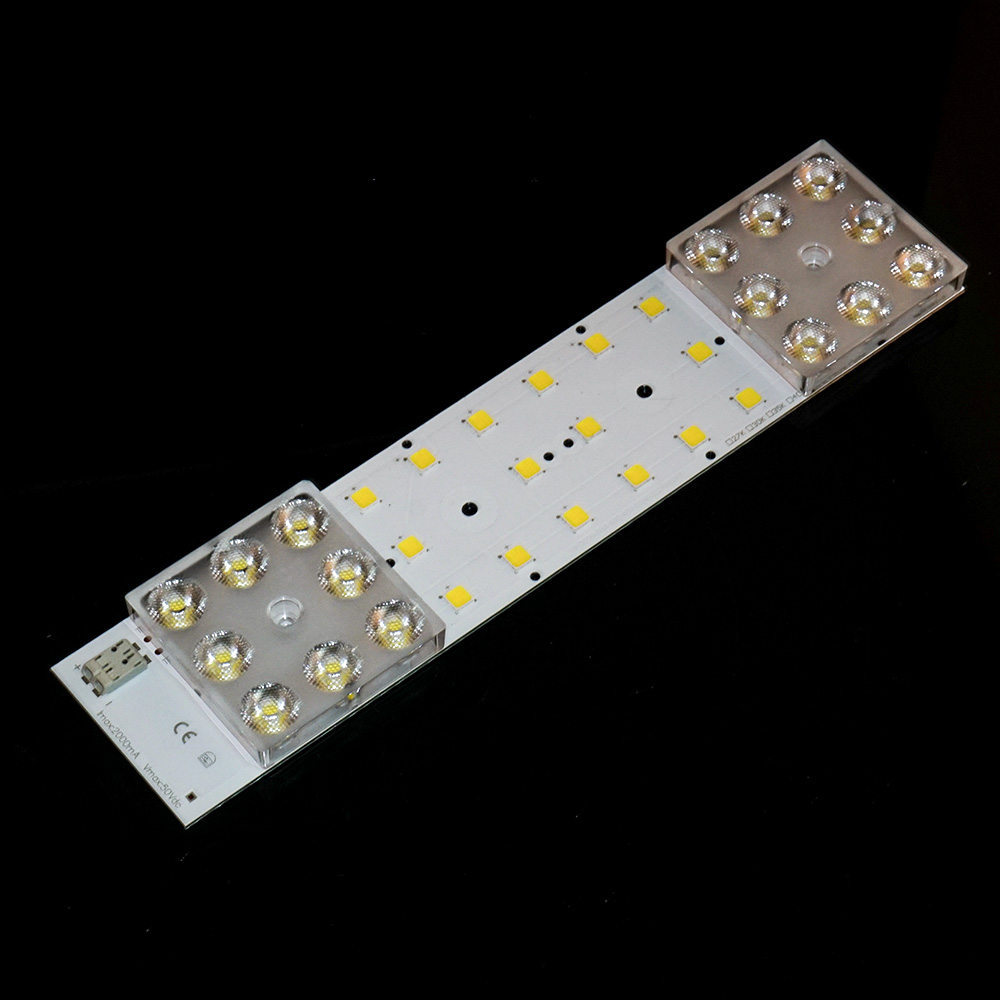

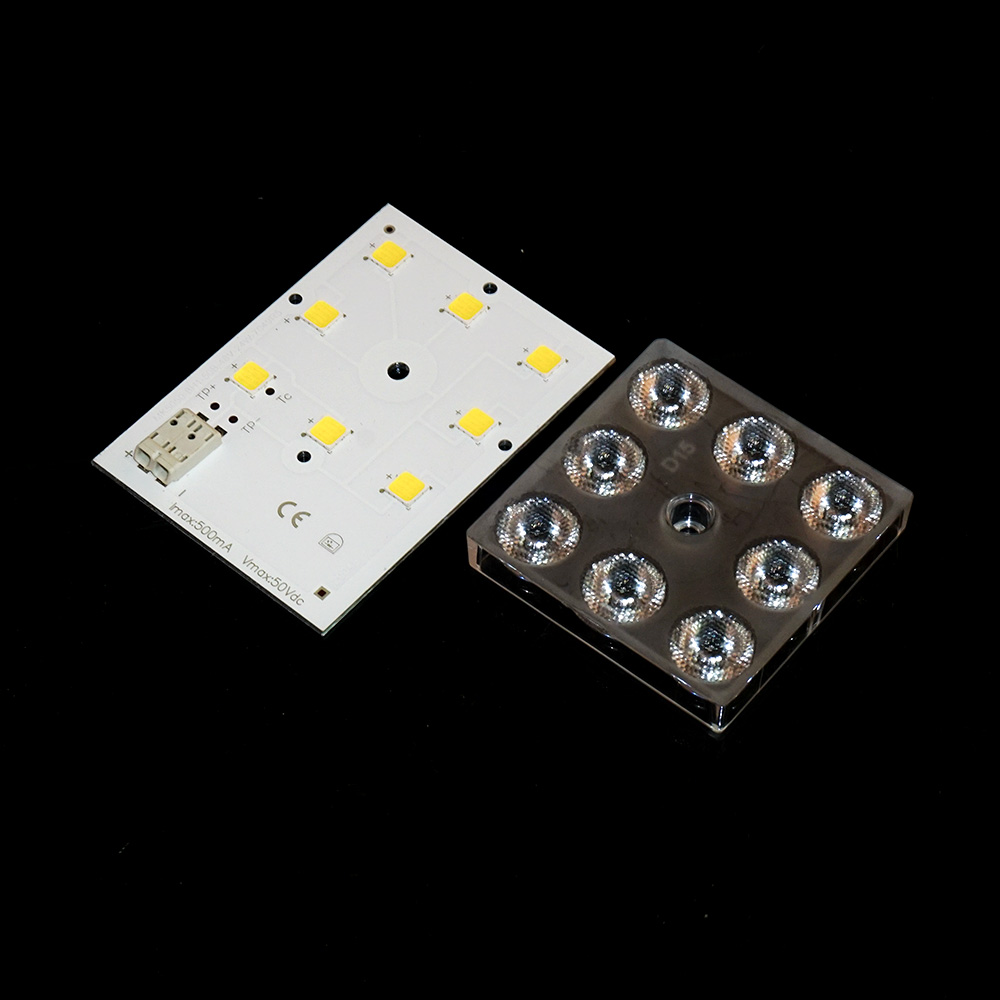

ZHAGA Led Street Light Smart Board Pcb Led Module Printed Circuit Board
The recent ‘LEDification’ in the industrial and outdoor lighting segments has rapidly transformed the way OEMs and light source suppliers operate. Indeed, a significant contributor to this transformation is the expected robustness of the LED modules, and their ability to withstand unpredictable conditions to ensure a safe operation in extreme and demanding applications. What’s more, the ability to deliver the right light levels at the right time and adjust light levels during critical situations adds to the reasons why the uptake of ‘digital’ light sources (LED modules) has proved beneficial to OEMs, offering a variety of form factors, diversity of CCT, CRIs, a higher level of optical control and, as a result, a higher performance efficacy compared to traditional light sources. It’s clear that LED is versatile, robust and low maintenance. But what about LED module reliability?
- Dimension MCPCB 49mm Width - PCB Thickness 1.6mm
· Smd 5050 LED
· Input Voltage DC36V
• Beam characteristic 120º
· Color temperatures (3000 K, 4000 K, 5000K)
· CRI>80 (CRI90 Available on request)
· Perfect for existing or new lamps
· LED module efficiency of up to 150 lm/W
· Excellent color consistency of 5 SDCM
· Long life-time: 50,000 hours
· Wide operating thermal range
· Optical flexibility via third party lenses
· Instant full light
PCB Manufacture Capability
MANKUN has its own UL-listed PCB manufacturing factories. [File Number: E334090]. We can meet your PCB technical requirements. Our PCB factory can manufacture 30,000 square meters PCB and 400,000 pcs monthly.
Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df etc.
Green, red, blue, white, yellow, purple, black, Double-sided
White, yellow, black, or negative, Double-sided or single-sided
Silk screen min line width
0.006'' or 0.15mm
Surface treatment type
ENIG, Immersion tin, HAF, HAF LF, OSP, flash gold, gold finger, sterling silver
Max. PCB dimensions(mm)
0.2-12.0mm, Flex 0.01~0.25''
Board thickness tolerance(mm)
Copper thickness tolerance(oz)
± 0.25 oz
Profile size tolerance(mm)
Min. drill hole diameter(mm)
0.25mm, 0.01'' or 10 mil
0.075mm or 3 mil
Shear, V-score, tab-routed
What We Can Do For PCB Assembly
We are specilized in PCB&PCBA and LED OEM/ODM manufacturing projects for 17 years. We can produce all kinds of PCBA, led pcba, cover confirmal coating, open mold, make plastic, install housing, make function tests, potting, etc. Our PCBA products are applied in many fileds, like medical, LOT, Industry, Household, Automotive and Customer...
