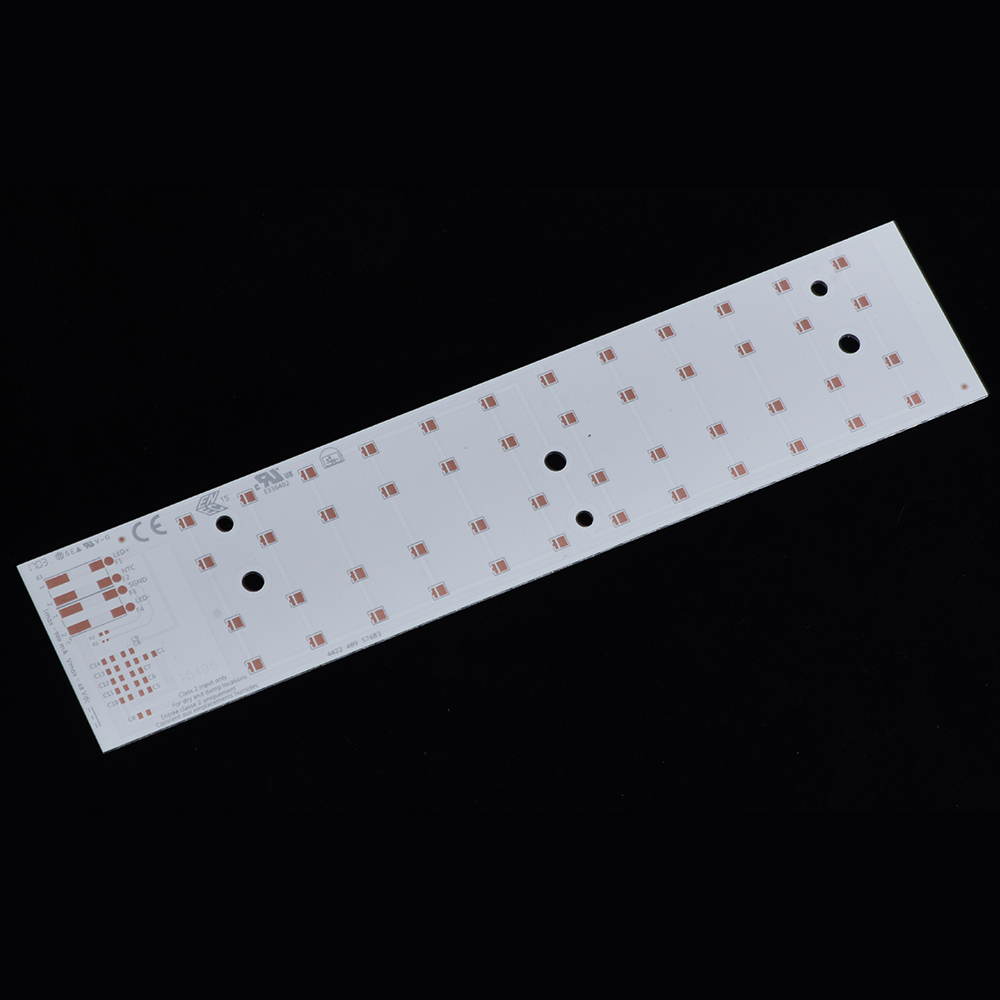

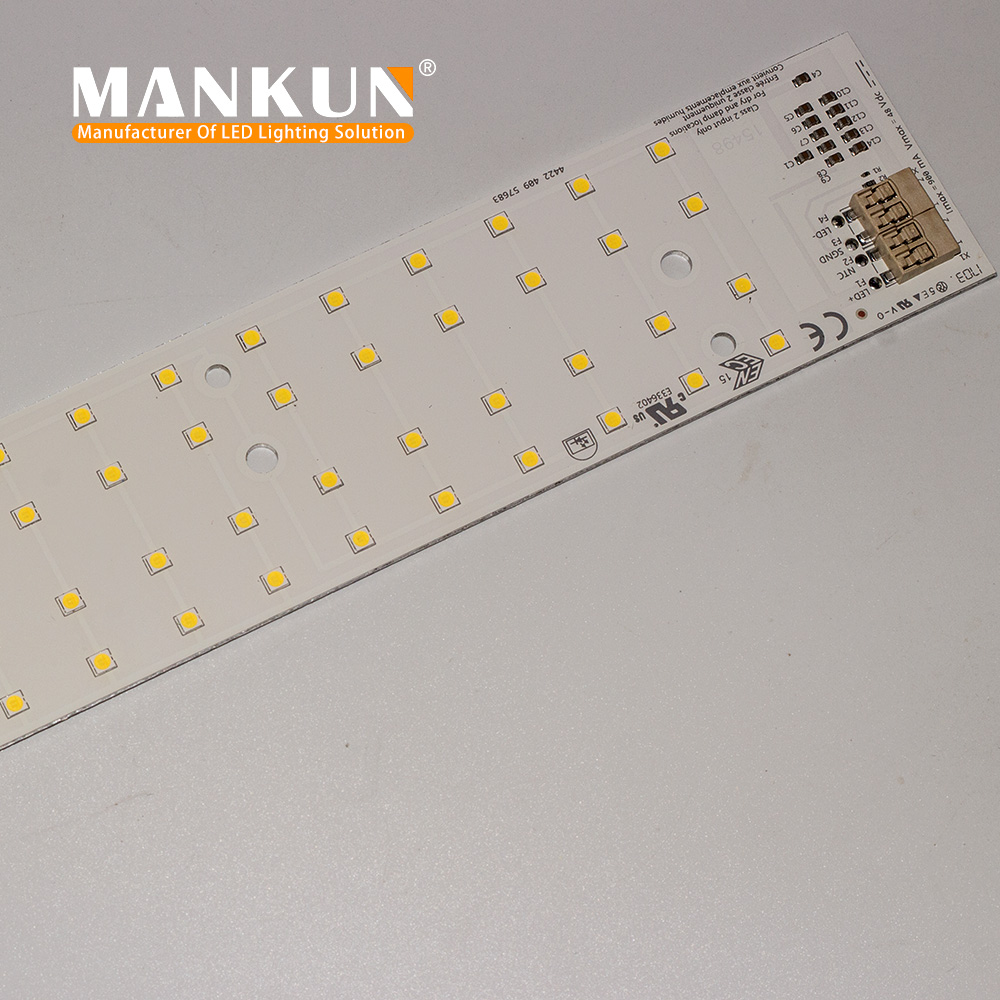

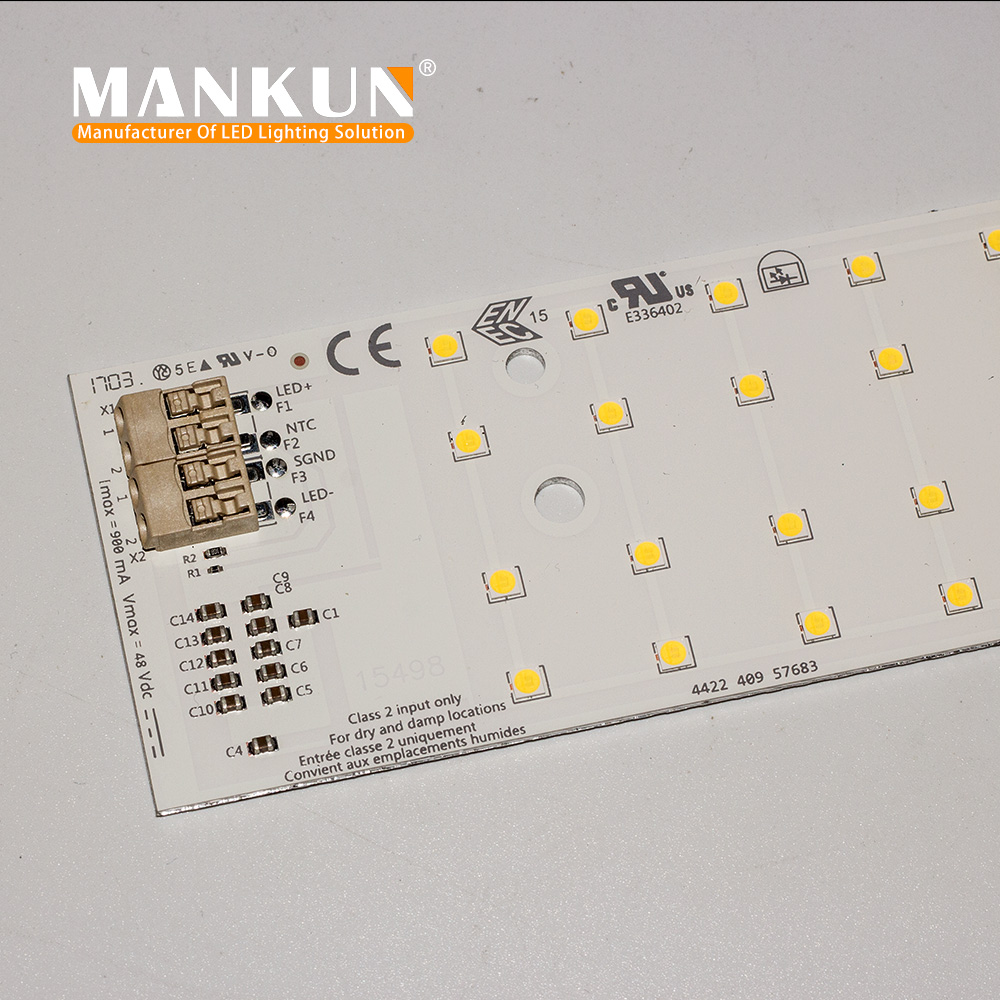

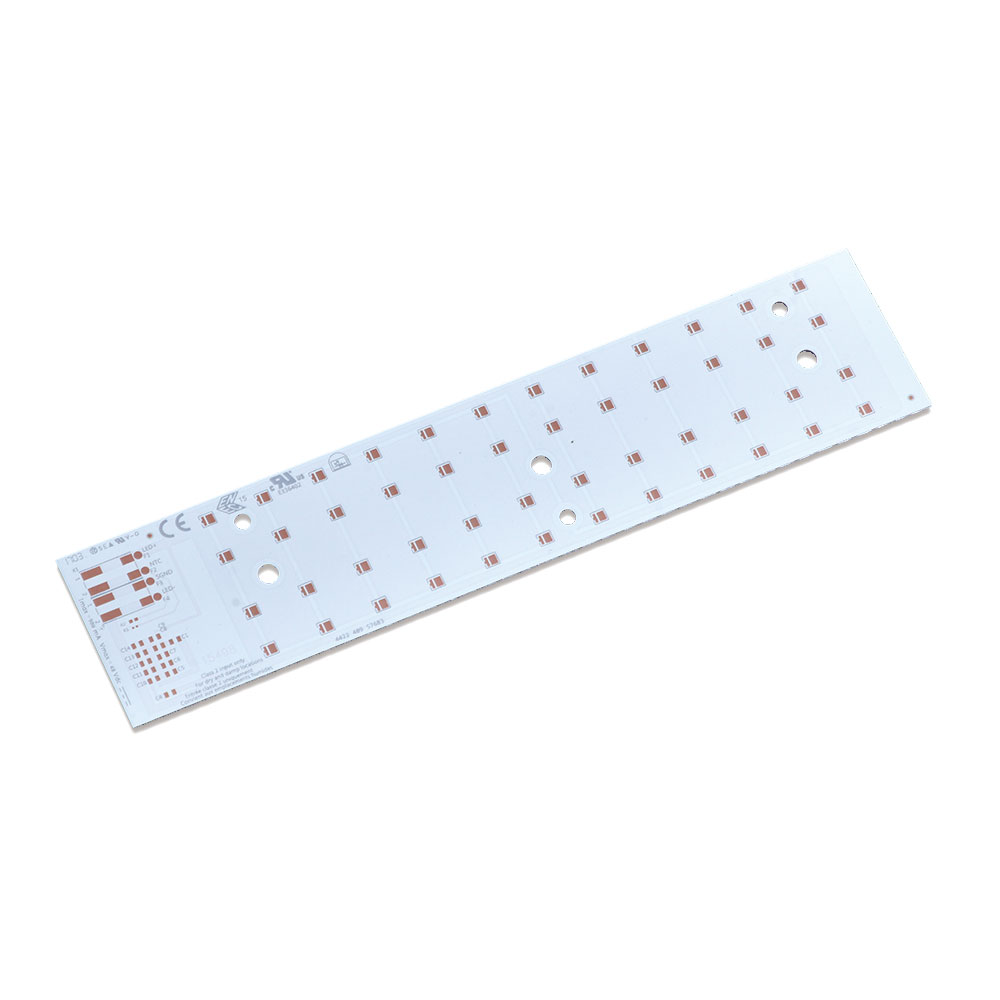

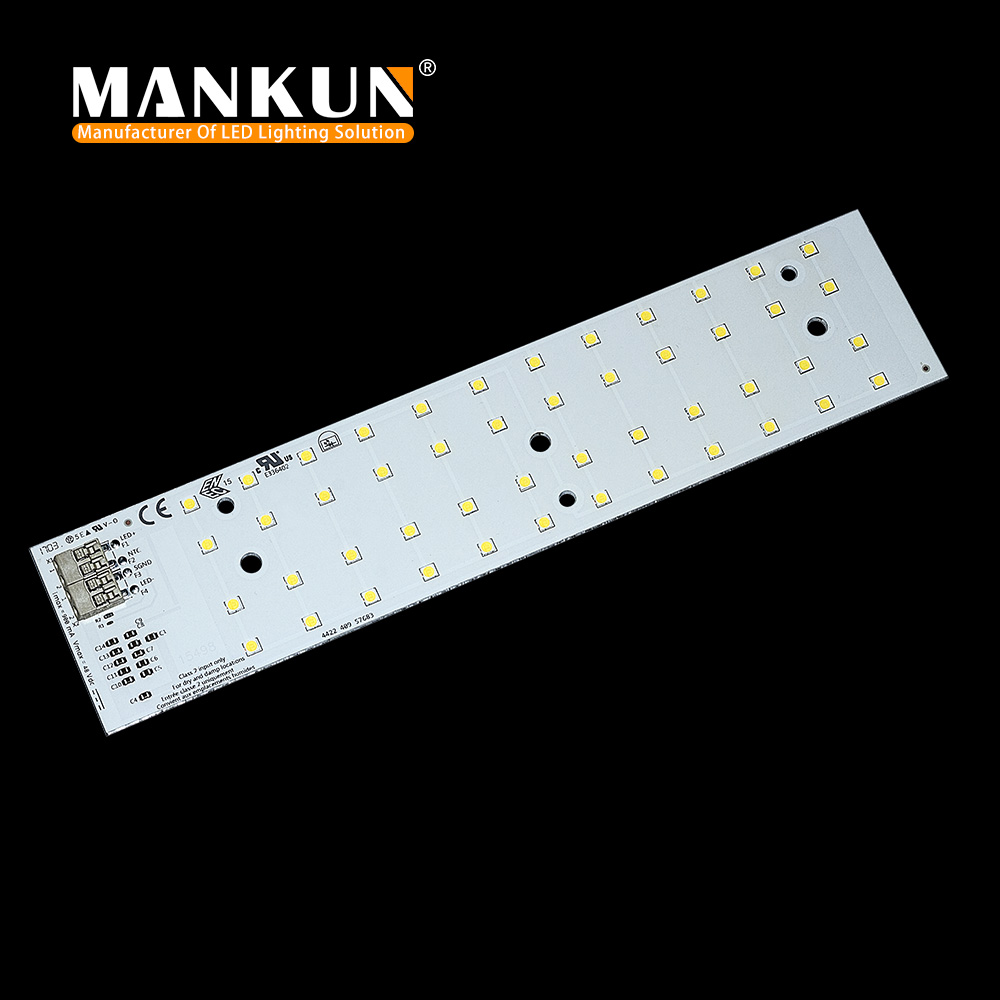

SMD 3030 4X12 35W PCB LED Module For Outdoor Streetlight Lamps 15498

PCB LED Moduleroduct description

• High efficiency outdoor modules

• Suitable for harsh and humid outdoor conditions

• Huge performance temperature range from -40 ... +105 °C

• Surge tested (+/- to earth) 6 kV with Tridonic LED driver

• For use with IP6x lenses (e.g. LEDiL Strada IP-4x4)

• Push-in terminals for simple and quick wiring

• Long lifetime up to 100,000 hours

• 5 years guarantee

Optical properties

• Colour temperatures 3,000, 4,000 and 5,000 K

• Useful luminous flux 5,400 lm at Irated and tp = 25 °C

• Efficacy of the LED module 165 lm/W at Irated and tp = 25 °C

• High colour rendering index CRI > 80

• Small luminous flux tolerances

Mechanical properties

• Module dimension 49 x 220 mm

• Installation of the module together with lens in the luminaire by means of an M3 screw

Approval marks:

Specific technical data
